(08.97[1]) - DECALS, RH, NORTH AMERICA

Запчасти Case IH RBX463 (08.97[1]) - DECALS, RH, NORTH AMERICA (08) - SHEET METAL/DECALS

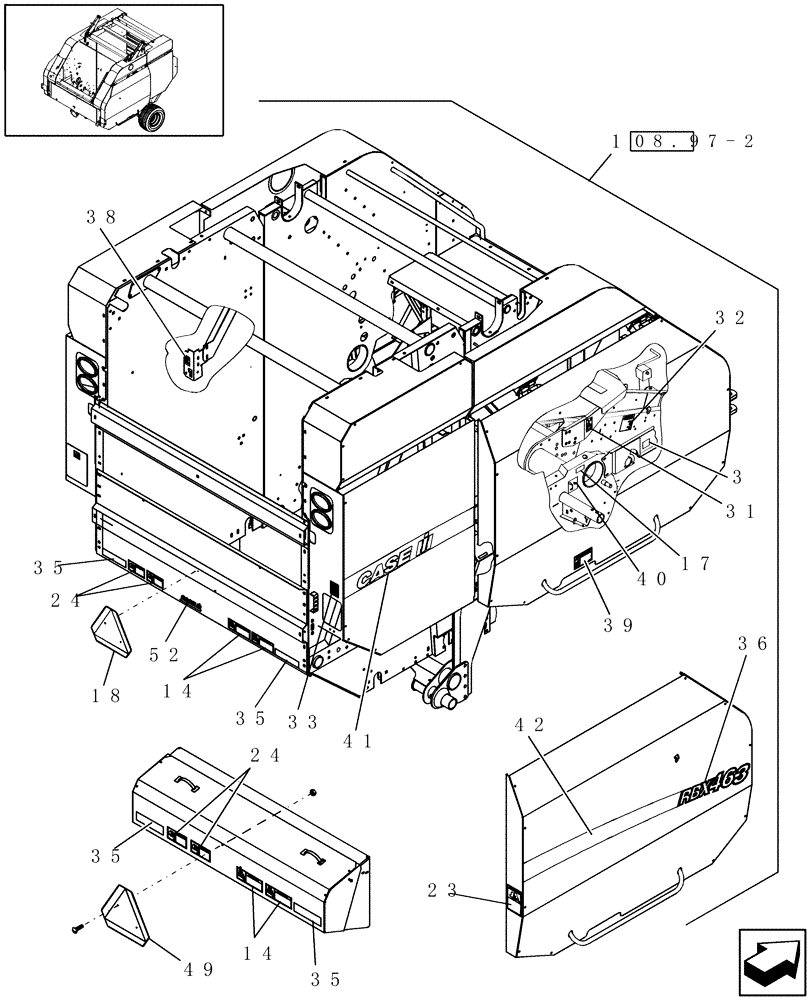

Схема запчастей Case IH RBX463 - (08.97[1]) - DECALS, RH, NORTH AMERICA (08) - SHEET METAL/DECALS
31
08.97-2
17
24
52
42
36
35
35
18
39
33
49
41
14
40
1
38
14
32
35
23
24
3
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87055489

DECAL KIT

Includes: Decals Shown in Fig. 08.97-1, 08.97-2 & Decal Placement Guide.

1шт.

3

87037375

WARNING DECAL

Net Knife, English

1шт.

3

87037730

DECAL

WARNING, Net Knife, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

14

86631516

WARNING DECAL

English

2шт.

14

86632799

DANGER DECAL

WARNING, French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

18

86547711

DECAL,SMV

SMV

1шт.

23

86631518

DANGER DECAL

English

4шт.

23

86632801

DECAL

DANGER, French

4шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

24

86631519

DANGER DECAL

English

3шт.

24

86632802

DECAL

DANGER, French

3шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

31

87018641

DECAL

Oil Level

1шт.

32

87012937

DECAL

Attention, Clutch

1шт.

33

9826734

DECAL

Control Valve

1шт.

35

86547781

REFLECTOR,RED

Red, Retroreflective

2шт.

36

87056428

DECAL

RBX463

1шт.

38

9826684

DECAL

Locking

1шт.

39

86626958

WARNING DECAL

English

2шт.

39

86626961

WARNING DECAL

French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

40

718861

DECAL

ATTENTION

2шт.

41

86979657

DECAL

RH, CIH Stripe

1шт.

42

87016867

DECAL

RH, Front Stripe

1шт.

47

849472

DANGER DECAL

English

1шт.

47

849483

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

48

9826789

DANGER DECAL,180mm x 90mm H

English

1шт.

48

9827448

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

49

86547710

EMBLEM

KIT SMV

1шт.

52

192848A2

DECAL

CIH Logo

1шт.
