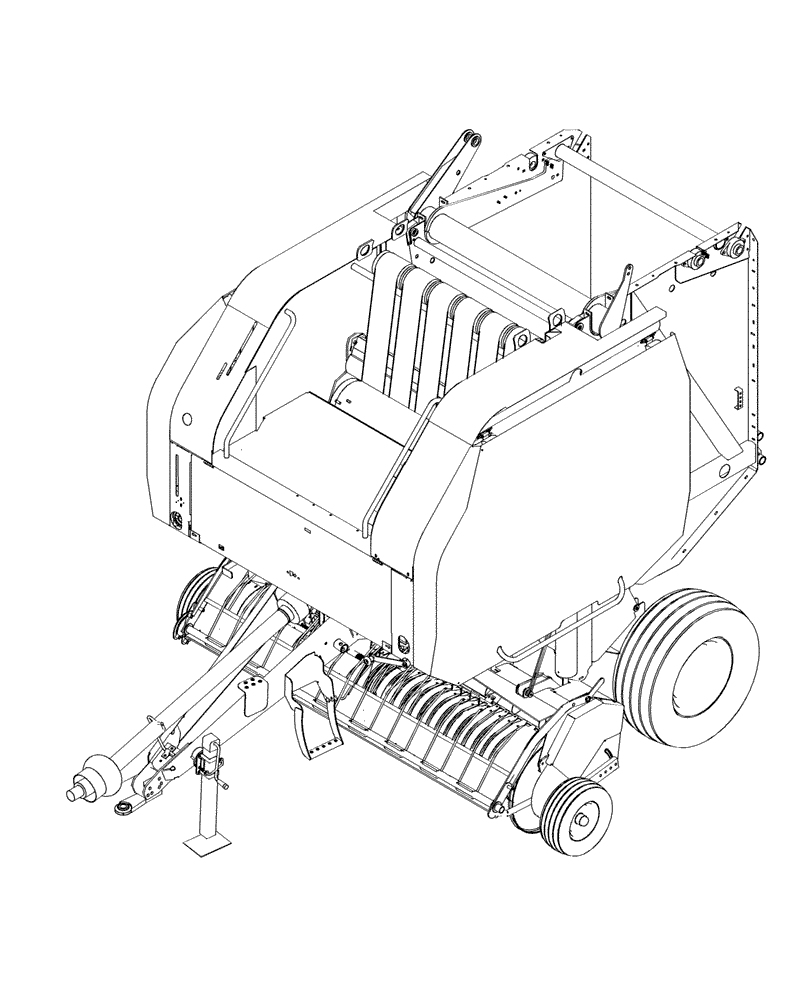

Запчасти Case IH RBX552 (PARTS[RBX552]) - DEALER PARTS STOCKING LIST FOR 5 MACHINES (00) - GENERAL

27291

BALL BEARING,20mm ID x 47mm OD x 14mm W

Net Wrap Units

6шт.

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

2шт.

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Sledge Roll Drive Slip Clutch

2шт.

617945

KNIFE SECTION

Twine Cutting

2шт.

638025

FLANGE

Std. Pickup

1шт.

857072

GAUGE

3,000 PSI, Bale Density

1шт.

9803325

SUPPORT

Dimple Roll

1шт.

87030468

HUB

Dimple Roll

2шт.

9806864

KNIFE,382mm L x 38.1mm W x 3.4mm Thk

Net Wrap

4шт.

9806931

IDLER GEAR,17T

17T, Sledge Roll Drive

1шт.

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

Tailgate Idler Roll

4шт.

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

9848810

SWITCH

Hall Effect, Net Wrap

1шт.

84015292

LATCH

Front & Side Door Latch

1шт.

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

Follower Roll

2шт.

86570919

SEAL KIT

Tailgate Lift Cylinder

1шт.

86590751

BEARING ASSY,40mm ID

Tailgate & Backwrap Rolls, Includes: 563733 Lock Collar

4шт.

86594422

SENSOR

Tailgate & Rotor Knife

1шт.

86605351

SEAL KIT

Bale Density Cylinder

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

86610638

BEARING ASSY,45mm ID

Starter Roll

2шт.

86614686

GEAR

24T, Sledge Roll

1шт.

86616065

BELT,177.80 mm W x 8712.20 mm L

Laced

8шт.

86618461

BELT,177.80 mm W x 1828.00 mm L

Chevron, Laced, Repair Section

2шт.

86625862

DISC

PTO Slip Clutch

2шт.

86625980

DIA KIT, HARVESTER

Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions, NA & AUS Units

5шт.

86632007

FINGER

Pickup, All Pickups

20шт.

86634483

GUARD

Pickup

5шт.

86978595

BEARING ASSY

Endless Belt

1шт.

86984909

BUSHING

PTO Slip Clutch

1шт.

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic, 3/16" x 4.9', Lube Line

1шт.
