(9-014) - FIRE EXTINGUISHER KIT, HK50556 COMPLETE

Запчасти Case IH RS561A (9-014) - FIRE EXTINGUISHER KIT,HK50556 COMPLETE Decals & Attachments

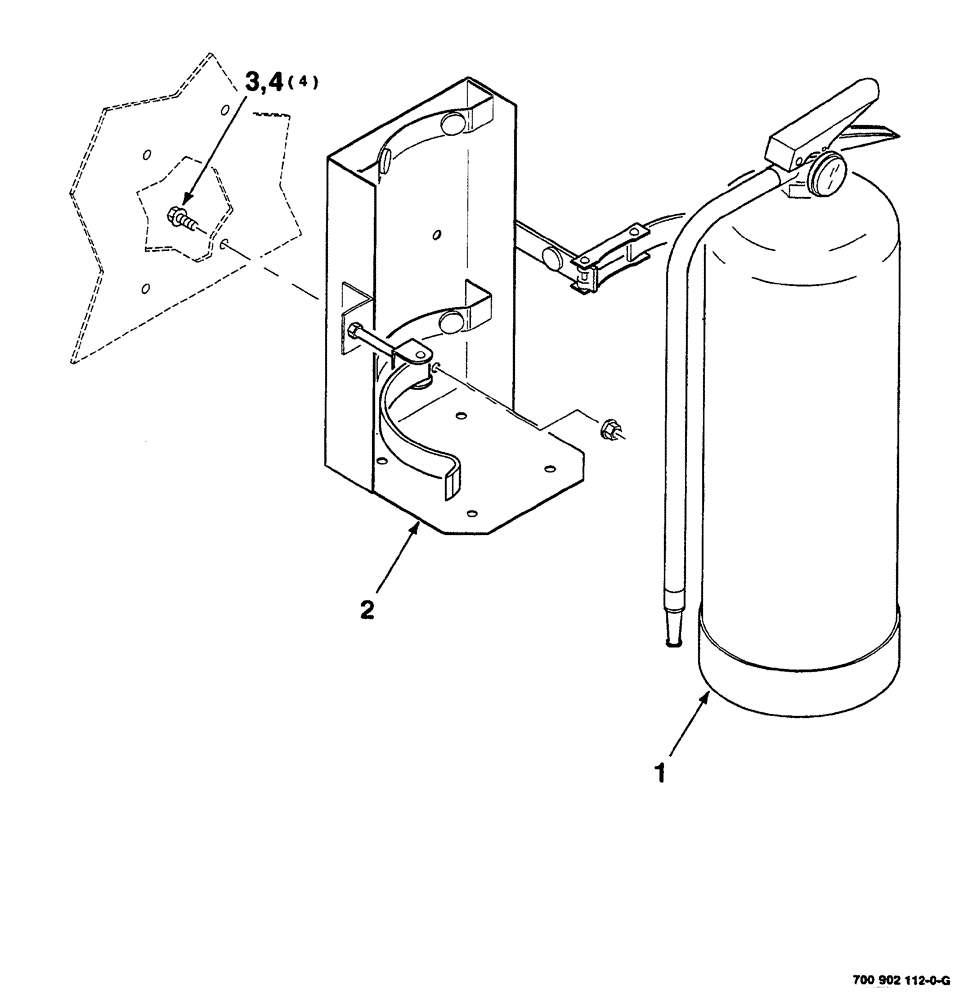

Схема запчастей Case IH RS561A - (9-014) - FIRE EXTINGUISHER KIT, HK50556 COMPLETE Decals & Attachments
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK50556

KIT, fire extinguisher, complete, to be ordered through wholegoods only

1шт.

1

700709200

FIRE EXTINGUISHER

1шт.

2

700709201

BRACKET

mounting

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.
