(8-004) - HYDRAULIC ASSEMBLY, TAILGATE, RIGHT, WITH MESH WRAP

Запчасти Case IH RS561A (8-004) - HYDRAULIC ASSEMBLY,TAILGATE,RIGHT, WITH MESH WRAP (07) - HYDRAULICS

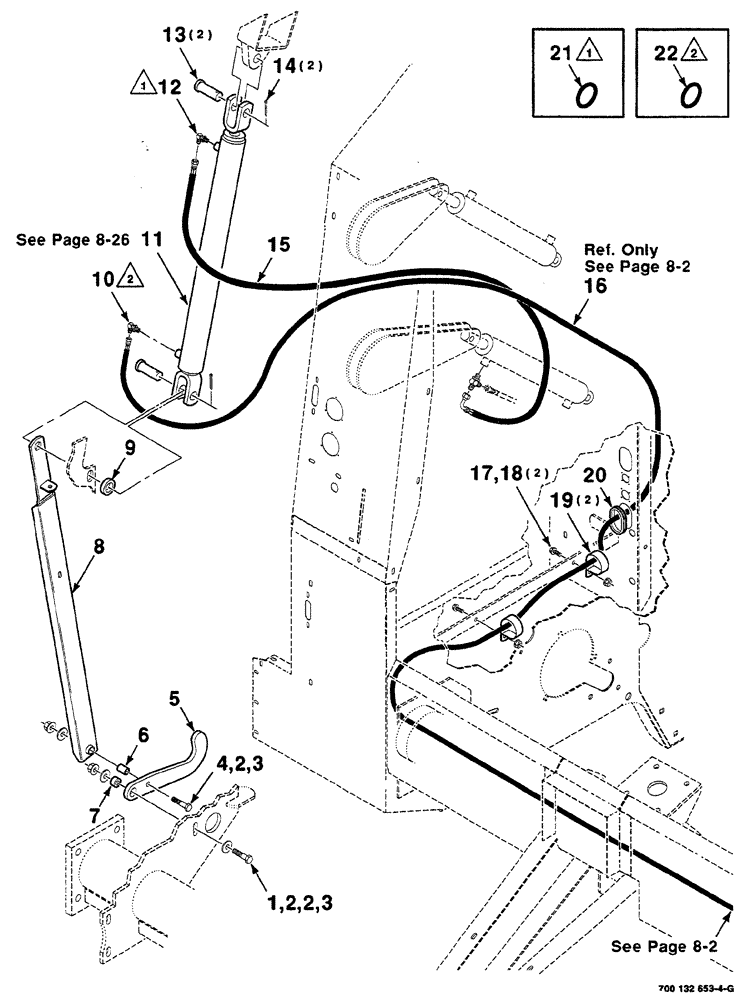

Схема запчастей Case IH RS561A - (8-004) - HYDRAULIC ASSEMBLY, TAILGATE, RIGHT, WITH MESH WRAP (07) - HYDRAULICS
21
11
12
2
19
14
8
6
18
4
7
22
9
3
1
2
17
16
2
3
5
15
10
20
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

2

700711557

WASHER

1/2", hardened, wide, plain

3шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

2шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

5

700132511

LATCH

1шт.

6

700132513

BUSHING

1шт.

7

700132512

BUSHING

1шт.

8

700132717

LINK

WA

1шт.

9

700120629

SPACER

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 22

1шт.

11

700717929

CYLINDER

ASSY. hydraulic

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 21

1шт.

13

700710292

PIN

clevis, special

2шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

15

700716085

HOSE

hydraulic

1шт.

16

700716086

HOSE

hydraulic

1шт.

17

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

18

231-5146

FLANGE NUT,3/8"-16

2шт.

19

7041015

CLAMP

line, 2-1/4", I.D.

2шт.

20

8027427

GROMMET

1шт.

21

738468

O-RING

9/16"

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4"

1шт.
