(8-010) - HYDRAULIC CONTROL ASSEMBLY, LEFT, BALE TENSION

Запчасти Case IH RS561A (8-010) - HYDRAULIC CONTROL ASSEMBLY,LEFT, BALE TENSION (07) - HYDRAULICS

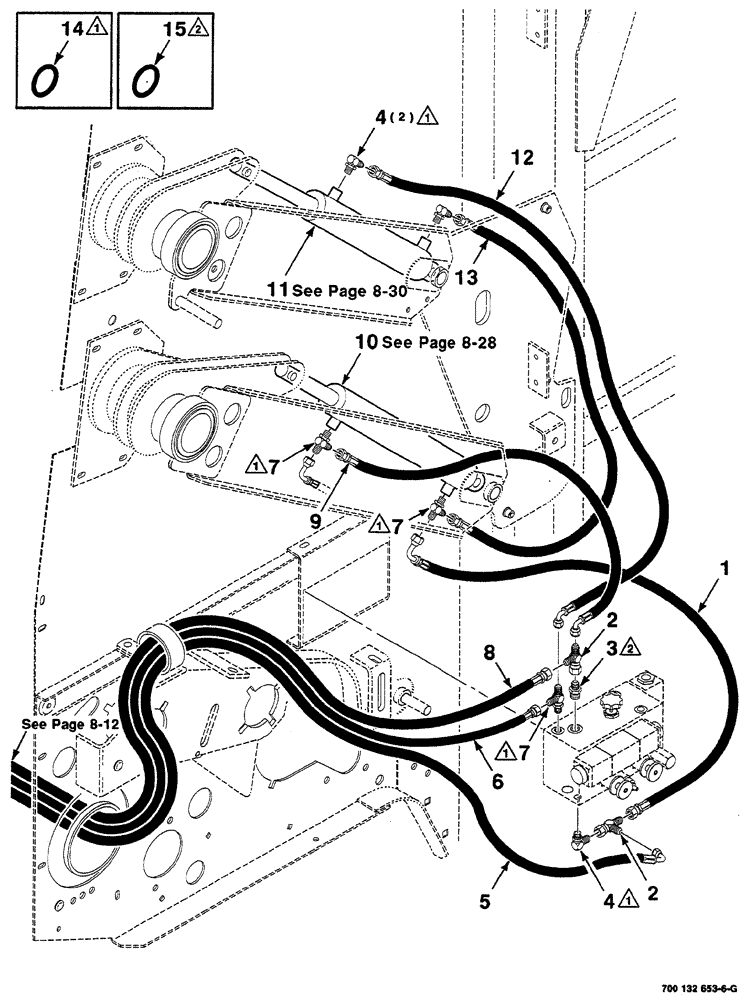

Схема запчастей Case IH RS561A - (8-010) - HYDRAULIC CONTROL ASSEMBLY, LEFT, BALE TENSION (07) - HYDRAULICS
10
7
5
13
4
12
11
4
9
2
8
7
7
2
6
14
3
1
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700719105

HOSE

hydraulic

1шт.

2

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, includes: REF. 15

1шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 14

3шт.

5

700714809

HOSE

hydraulic

1шт.

6

700719094

HYDRAULIC HOSE,0.25" ID x 161.42", SAE J516, SAE J343

hydraulic

1шт.

7

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 14

3шт.

8

700719100

HYDRAULIC HOSE,0.38" ID x 110.24", SAE J516, SAE J343

hydraulic

1шт.

9

700719110

HOSE

hydraulic

1шт.

10

700719621

CYLINDER

ASSY. hydraulic

1шт.

11

700714707

CYLINDER

ASSY. hydraulic

1шт.

12

700716085

HOSE

hydraulic

1шт.

13

700714806

HYDRAULIC HOSE,0.25" ID x 39.37", SAE J517, SAE J516, SAE J343

hydraulic

1шт.

14

738468

O-RING

9/16"

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4"

1шт.
