(8-026) - HYDRAULIC CYLINDER ASM., TAILGATE, WITH MESH WRAP, 700717929 COMPLETE

Запчасти Case IH RS561A (8-026) - HYDRAULIC CYLINDER ASM.,TAILGATE, WITH MESH WRAP, 700717929 COMPLETE (07) - HYDRAULICS

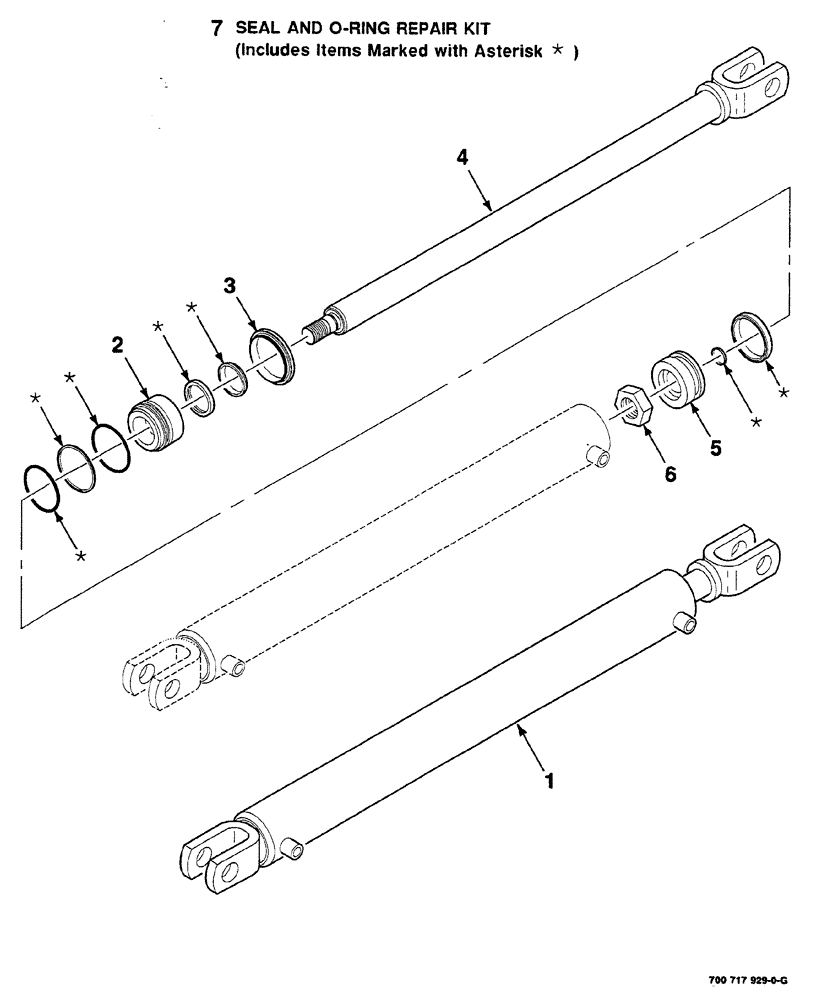

Схема запчастей Case IH RS561A - (8-026) - HYDRAULIC CYLINDER ASM., TAILGATE, WITH MESH WRAP, 700717929 COMPLETE (07) - HYDRAULICS
*
*
1
7
2
*
*
*
3
*
6
4
*
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700717929

CYLINDER

ASSY. hydraulic, complete, 2-1/2 in. bore x 24 in. stroke

1шт.

2

700718149

GUIDE

rod

1шт.

3

700718150

NUT

spanner

1шт.

4

700718147

ROD

piston

1шт.

5

700710421

PISTON

1шт.

6

774315

NUT

7/8"-14, hex. top lock, GR C

1шт.

7

700718146

KIT

seal and o-ring repair, Includes items in art marked with asterisk

1шт.
