(8-028) - HYDRAULIC CYLINDER ASSEMBLY, LOWER BALE TENSION, 700719621 COMPLETE

Запчасти Case IH RS561A (8-028) - HYDRAULIC CYLINDER ASSEMBLY,LOWER BALE TENSION, 700719621 COMPLETE (07) - HYDRAULICS

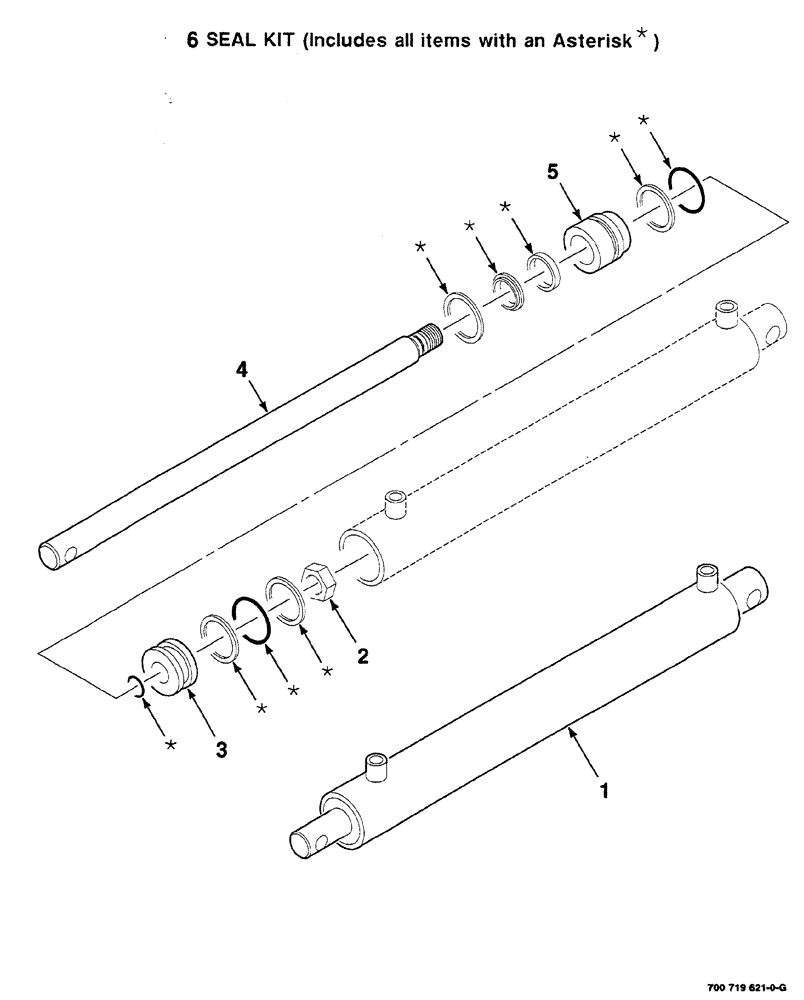

Схема запчастей Case IH RS561A - (8-028) - HYDRAULIC CYLINDER ASSEMBLY, LOWER BALE TENSION, 700719621 COMPLETE (07) - HYDRAULICS
*
*
4
5
*
*
*
3
6
*
*
2
*
1
*
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700719621

CYLINDER

hydraulic, complete, 2 in. bore x 16 in. stroke

1шт.

2

700707418

JAM NUT

7/8"-14, hex jam

1шт.

3

700707419

PISTON

1шт.

4

700708959

ROD

1шт.

5

700711112

GUIDE

rod

1шт.

6

700711954

SEAL KIT

KIT and o-ring repair, Includes items in art marked with asterisk

1шт.
