(8-034) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700719879 COMPLETE

Запчасти Case IH RS561A (8-034) - HYDRAULIC CYLINDER ASSEMBLY,THREADER,700719879 COMPLETE (07) - HYDRAULICS

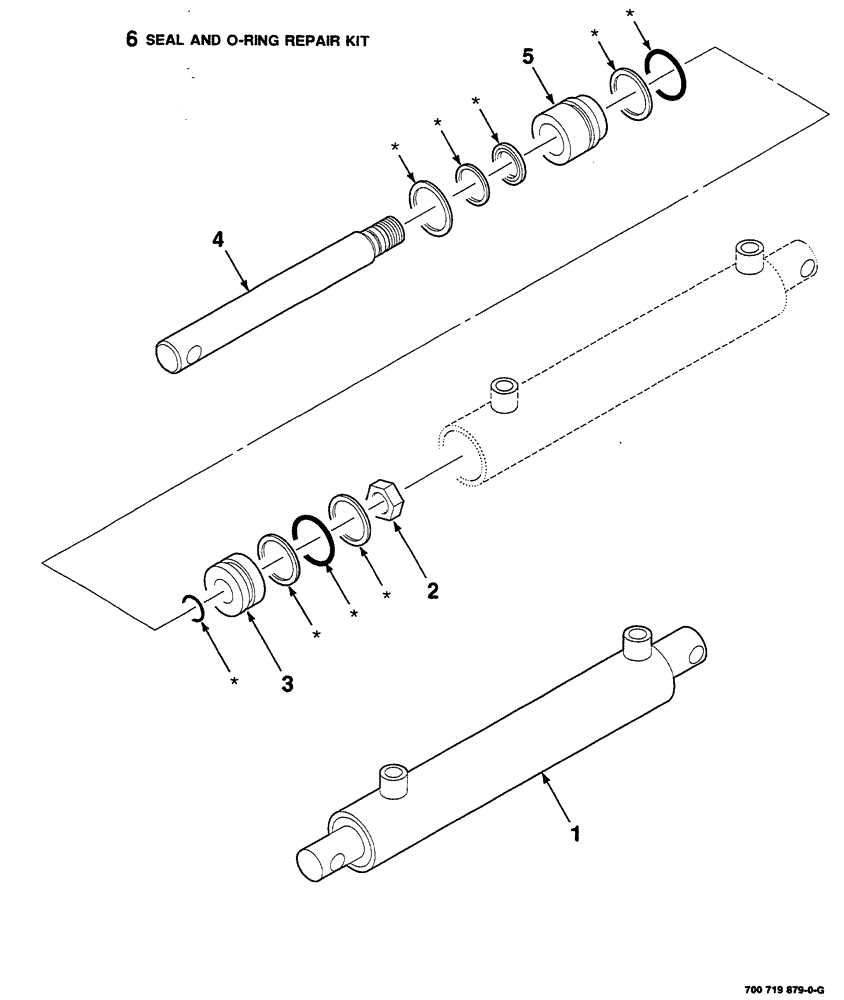

Схема запчастей Case IH RS561A - (8-034) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700719879 COMPLETE (07) - HYDRAULICS
*
*
*
5
*
*
*
*
*
2
6
3
1
*
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700719879

CYLINDER

ASSY. hydraulic, complete, 2-1/2 in. bore x 12 in.stroke

1шт.

2

774315

NUT

7/8"-14, hex. top lock, GR/C

1шт.

3

700710421

PISTON

1шт.

4

700719881

PISTON ROD

1шт.

5

700719882

GUIDE

rod

1шт.

6

700719883

SEAL KIT

KIT and o-ring repair, Includes items in art marked with asterisk

1шт.
