(2-10) - IMPLEMENT DRIVELINE (BONDIOLI), HEAVY DUTY (8530 ONLY)

Запчасти Case IH 8530 (2-10) - IMPLEMENT DRIVELINE (BONDIOLI), HEAVY DUTY (8530 ONLY) Driveline

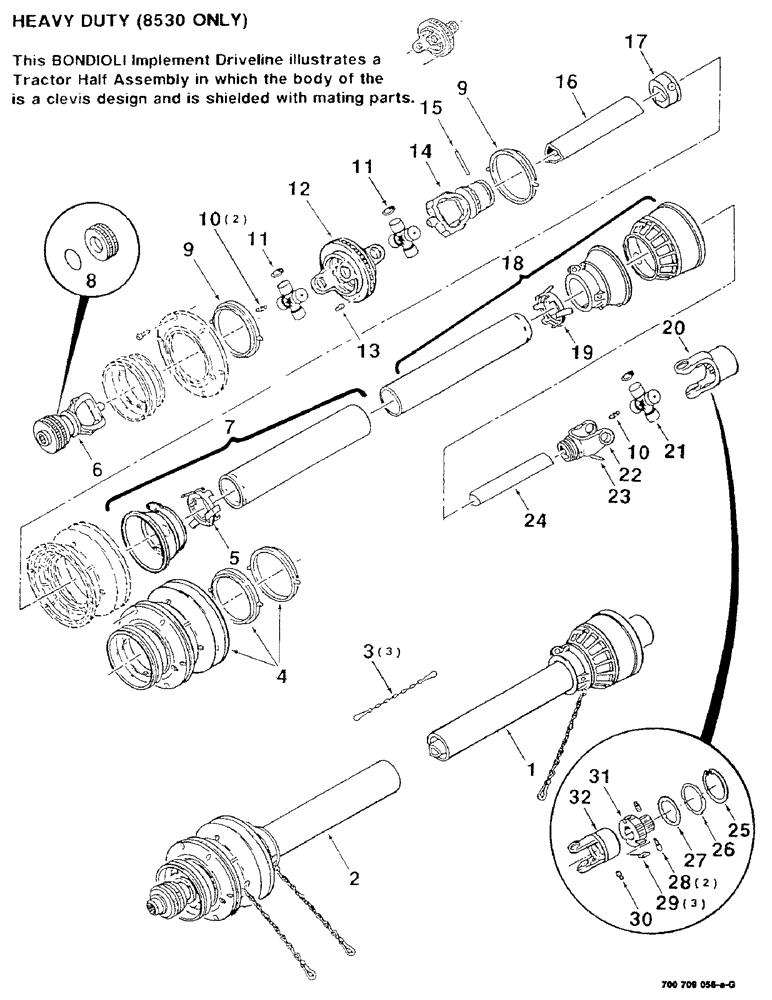

Схема запчастей Case IH 8530 - (2-10) - IMPLEMENT DRIVELINE (BONDIOLI), HEAVY DUTY (8530 ONLY) Driveline
32
9
15
10
26
24
5
2
22
20
29
25
13
27
7
8
11
21
3
11
28
31
1
6
18
12
19
10
23
16
4
30
9
17
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700709056

JOINT

U-JOINT ASSEMBLY - implement half

1шт.

2

700709054

JOINT

U-JOINT ASSEMBLY - tractor half

1шт.

3

700707183

CHAIN (AG)

CHAIN - safety

3шт.

4

700709053

CONE

SHIELD - CV

1шт.

5

700707189

SHIELD

BEARING - shield, outer

1шт.

6

700709040

FORK

YOKE ASSEMBLY - tractor

1шт.

7

700709057

SHIELD

SHEILD ASSEMBLY

1шт.

8

700707181

COLLAR

1шт.

9

700709047

SHIELD

RING - bearing (Set of two)

1шт.

10

700707193

NIPPLE, LUBE

45 DEGREE ZERK

3шт.

11

700709041

CROSS

JOURNAL REPAIR KIT

2шт.

REF #11 P/N 700709041 JOURNAL REPAIR KIT; THE CENTER CROSS CAP DIAMATER IS 30.2 MM AND THE LENGTH W/CAPS IS 92 MM.

1шт.

12

700709042

BODY

- CV

1шт.

13

700707187

NIPPLE, LUBE

ZERK

1шт.

14

700709851

FORK

YOKE

1шт.

15

763847

PIN

1шт.

16

700709044

TUBE

- drive, outer

1шт.

17

700707175

NUT

COLLAR - grease

1шт.

18

700709058

SHIELD

ASSEMBLY - implement

1шт.

19

700707188

INNER SHIELD

BEARING - shield, inner

1шт.

20

700709049

CLUTCH

ASSEMBLY - overrunning

1шт.

21

700707171

CROSS

JOURNAL REPAIR KIT

1шт.

22

700707172

TUBE

YOKE - tube, inner

1шт.

23

700707194

PIN

SLOTTED SPRING PIN

1шт.

24

700709045

TUBE

- drive, inner

1шт.

25

700708775

SNAP RING

RING - retaining

1шт.

26

700708777

WASHER

RING - sealing

1шт.

27

700708778

RING

- screening

1шт.

28

700708790

KIT

PIN - push

2шт.

29

700708779

RATCHET

- clutch (Includes 700711706)

3шт.

700713664

RATCHET

- clutch

3шт.

30

700708915

NIPPLE, LUBE

ZERK

1шт.

31

700709490

HUB

- clutch

1шт.

32

700709050

YOKE

HOUSING - with yoke (Includes 700713664 (3))

1шт.

700711706

FORK

HOUSING - with yoke

1шт.
