(17) - GAUGE WHEELS AND WINDGUARD ASSEMBLY

Запчасти Case IH 8540 (17) - GAUGE WHEELS AND WINDGUARD ASSEMBLY Pickup

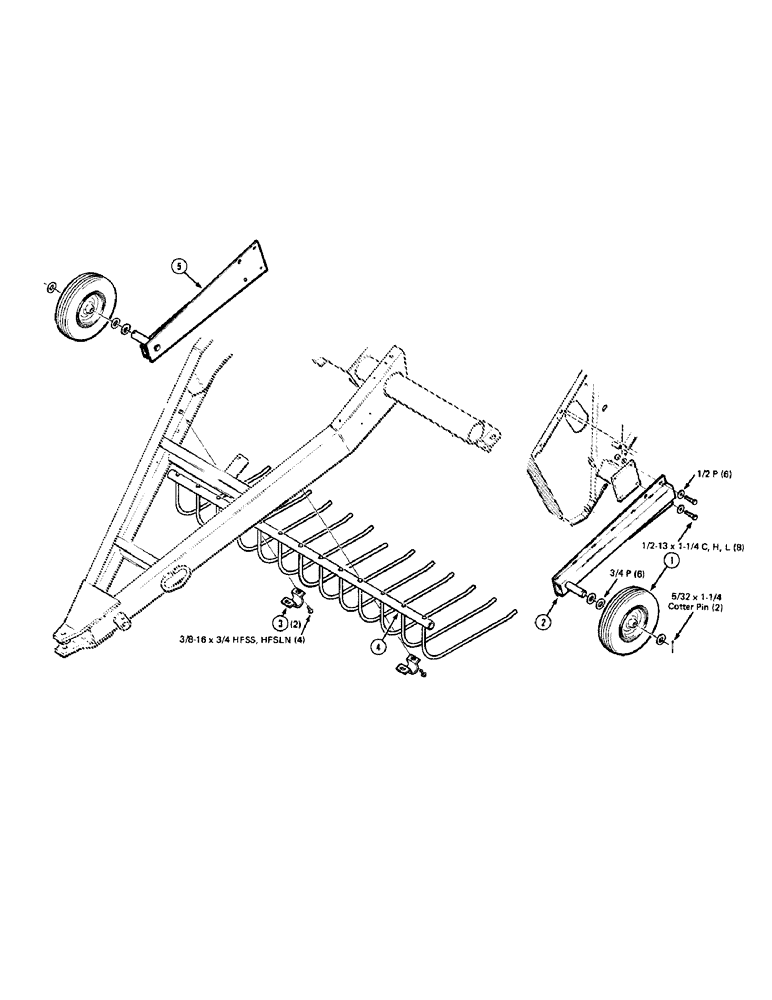

Схема запчастей Case IH 8540 - (17) - GAUGE WHEELS AND WINDGUARD ASSEMBLY Pickup
1
3
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707969

WHEEL

gauge

2шт.

2

6852883

STRUT

left, gauge wheel

1шт.

3

NLS

NO LONGER SERVICED

HANGER, windguard

2шт.

4

NLS

NO LONGER SERVICED

WINDGUARD

1шт.

5

6852891

STRUT

right, gauge wheel

1шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex cap screw grade 5

8шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 x 3/4 hex flange serrated screw grade 5

4шт.
