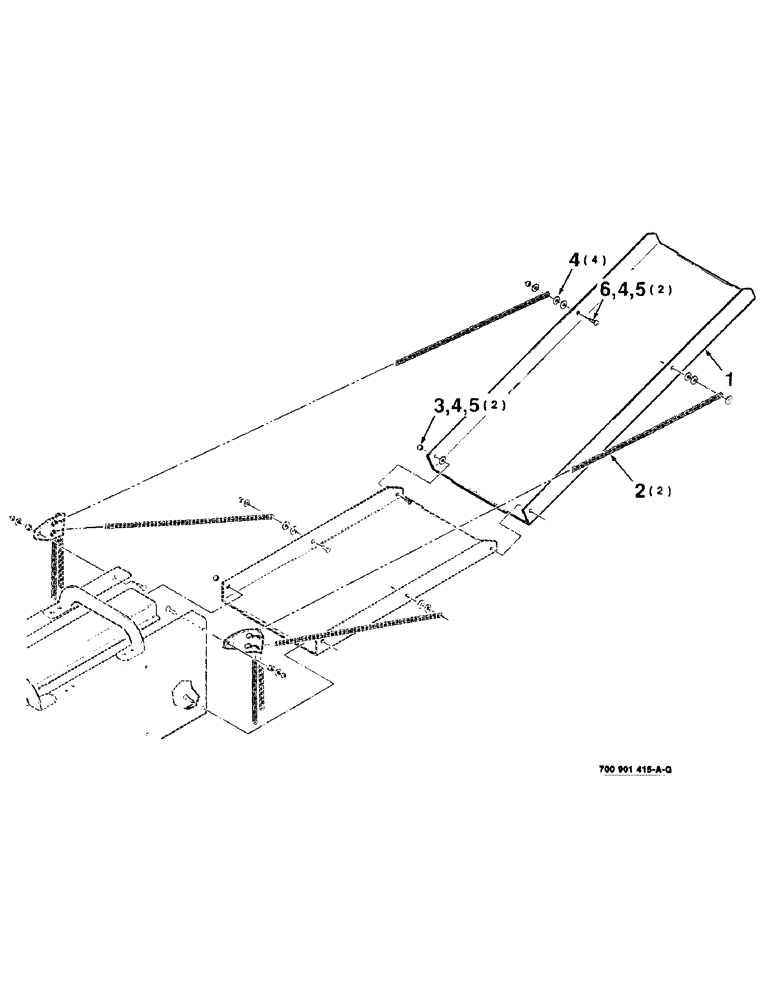

Запчасти Case IH 8545 (9-22) - BALE CHUTE EXTENSION KIT, (HK40417 BALE CHUTE EXTENSION KIT COMPLETE) Decals & Attachments

HK40417

CHUTE (DOWNWARD)

BALE CHUTE EXTENSION KIT COMPLETE

1шт.

1

6559512

CHUTE (DOWNWARD)

CHUTE - loading

1шт.

2

6559504

CHAIN (AG)

CHUTE - chute, rear

2шт.

3

440-13812

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CRPHMS

2шт.

4

495-21044

WASHER,3/8"

8шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.
