(09-16) - BALE CHUTE KIT, HK40416 , TO BE ORDERED FROM WHOLEGOODS ONLY

Запчасти Case IH 8555 (09-16) - BALE CHUTE KIT, HK40416 , TO BE ORDERED FROM WHOLEGOODS ONLY Decals & Attachments

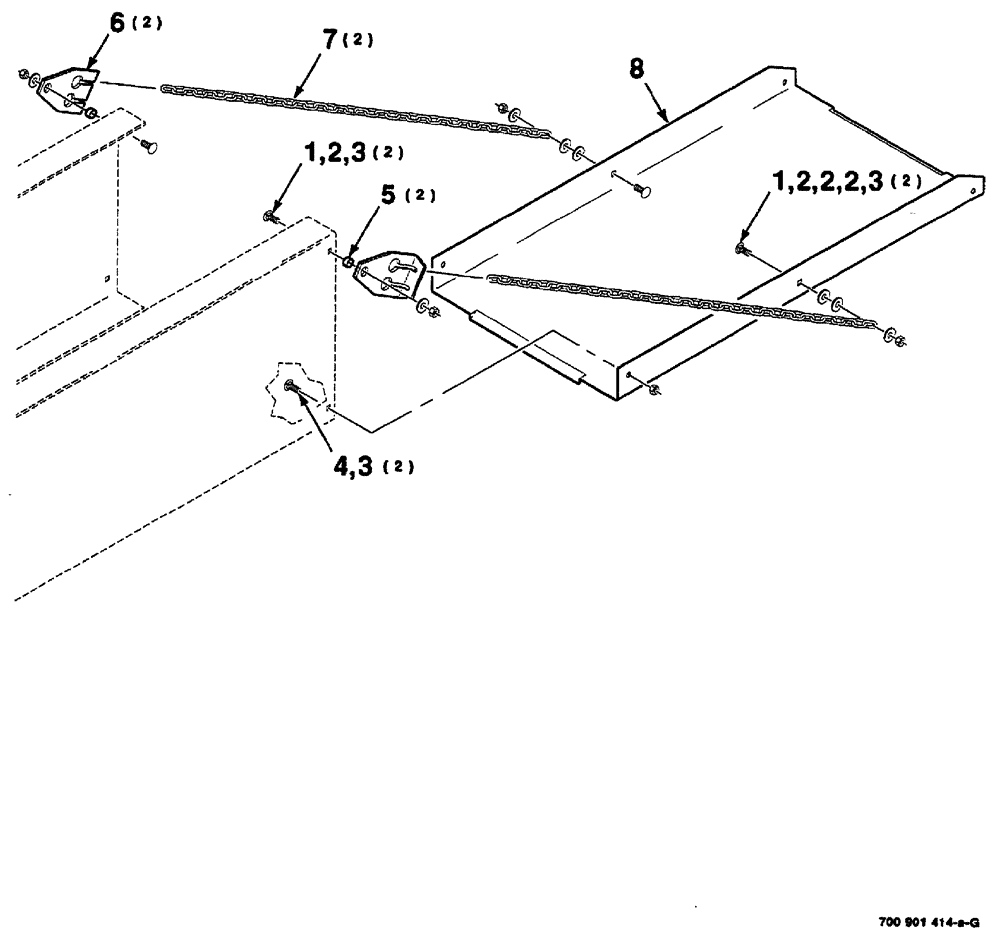

Схема запчастей Case IH 8555 - (09-16) - BALE CHUTE KIT, HK40416 , TO BE ORDERED FROM WHOLEGOODS ONLY Decals & Attachments
1
6
7
8
2
2
5
3
3
1
3
2
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK40416

CHUTE (DOWNWARD)

KIT bale, complete

1шт.

1

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

2

495-21044

WASHER,3/8"

8шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock hex flange top, 3/8-16, GR/G

6шт.

4

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

5

6475495

BUSHING

2шт.

6

6859102

BRACKET

hanger

2шт.

7

6559876

CHAIN (AG)

2шт.

8

6554448

BAIL

table

1шт.
