(09-20) - BALE CHUTE EXTENSION KIT, HK40417, TO BE ORDERED THROUGH WHOLEGOODS ONLY

Запчасти Case IH 8555 (09-20) - BALE CHUTE EXTENSION KIT, HK40417, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

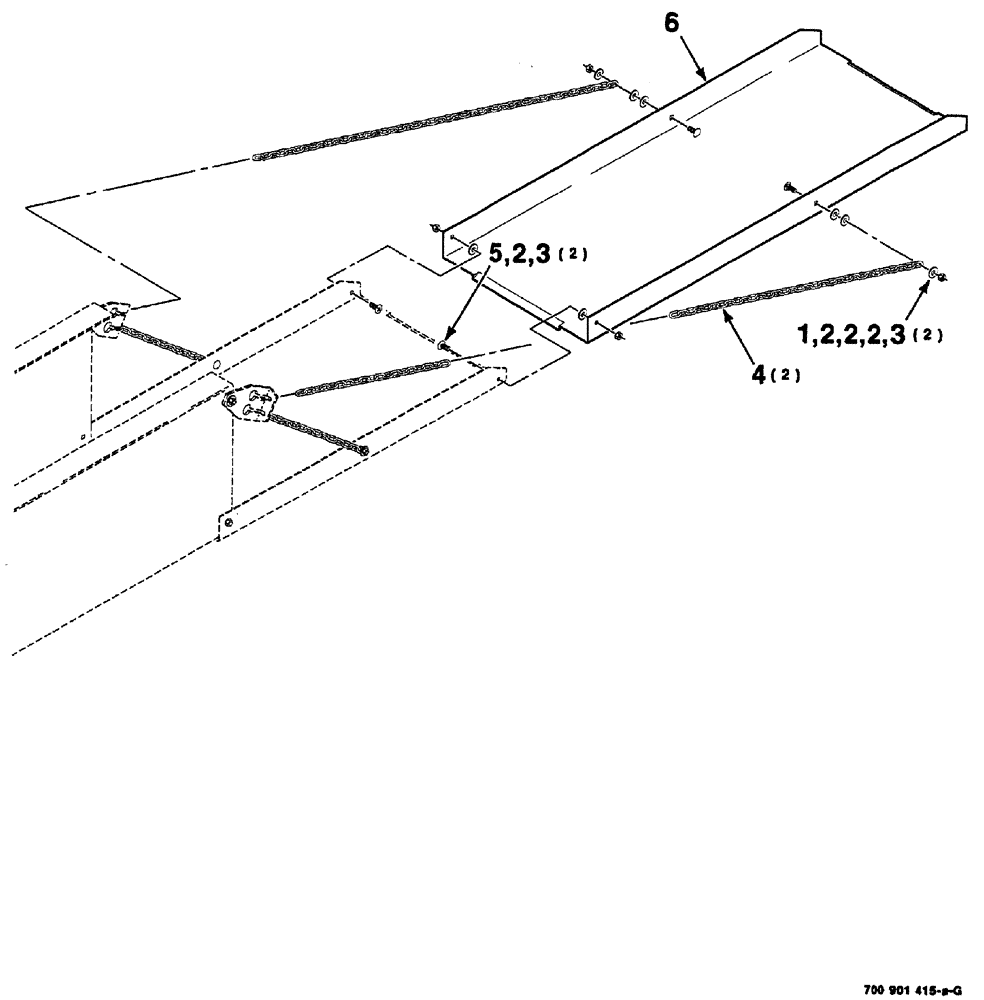

Схема запчастей Case IH 8555 - (09-20) - BALE CHUTE EXTENSION KIT, HK40417, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments
4
3
2
1
6
2
3
2
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK40417

CHUTE (DOWNWARD)

KIT bale extension, complete

1шт.

1

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

2

495-21044

WASHER,3/8"

8шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock hex flange top, 3/8-16, GR/G

4шт.

4

6559504

CHAIN (AG)

2шт.

5

440-13812

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

cross recess pan head thread machine, 3/8-16 x 3/4

2шт.

6

6559512

CHUTE (DOWNWARD)

TABLE bale

1шт.
