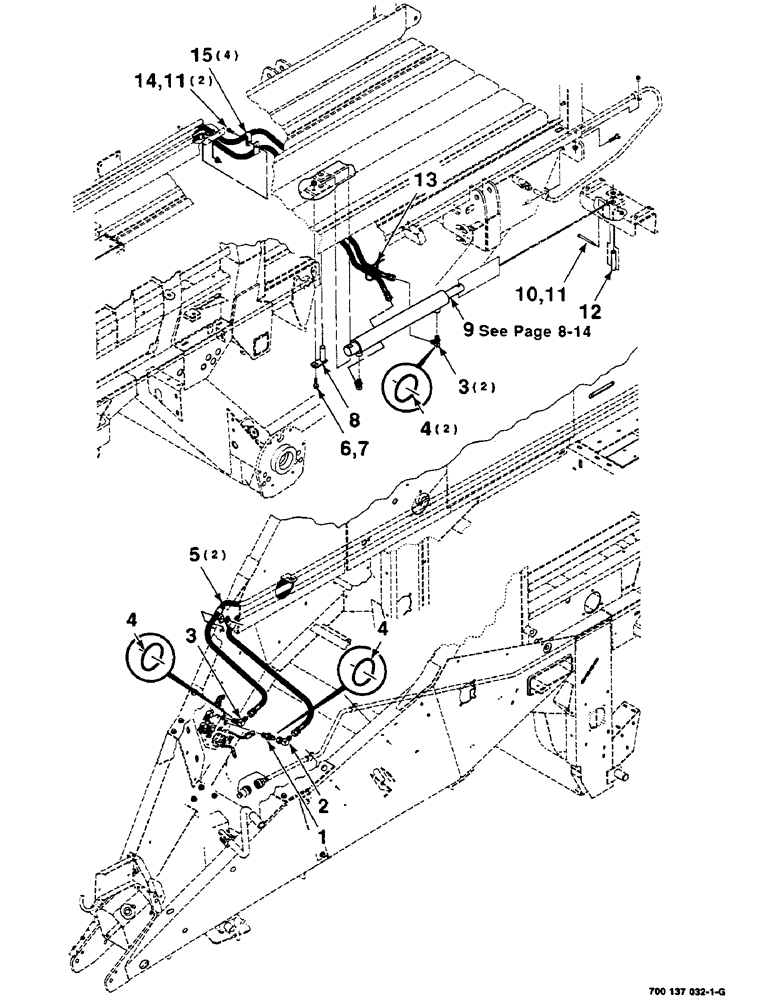

Запчасти Case IH 8585 (8-12) - BALE EJECTOR HYDRAULIC ASSEMBLY (07) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., (Incl. item 4) 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes item 4) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

3шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

5

CAS1714708

HOSE

- hyd

2шт.

6

160-109

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2-13 X 1-3/4 HFS GR8

1шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

8

700129696

PIN

WA

1шт.

9

700713998

CYLINDER

- hydraulic

1шт.

10

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 X 4-1/2 C

1шт.

11

329-286

FLANGE NUT,Flg, 3/8"-16, G8

1шт.

12

700129699

PIN

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

4шт.
