(35.550.10) - HYDRAULIC BALE TENSION

Запчасти Case IH SB551 (35.550.10) - HYDRAULIC BALE TENSION (35) - HYDRAULIC SYSTEMS

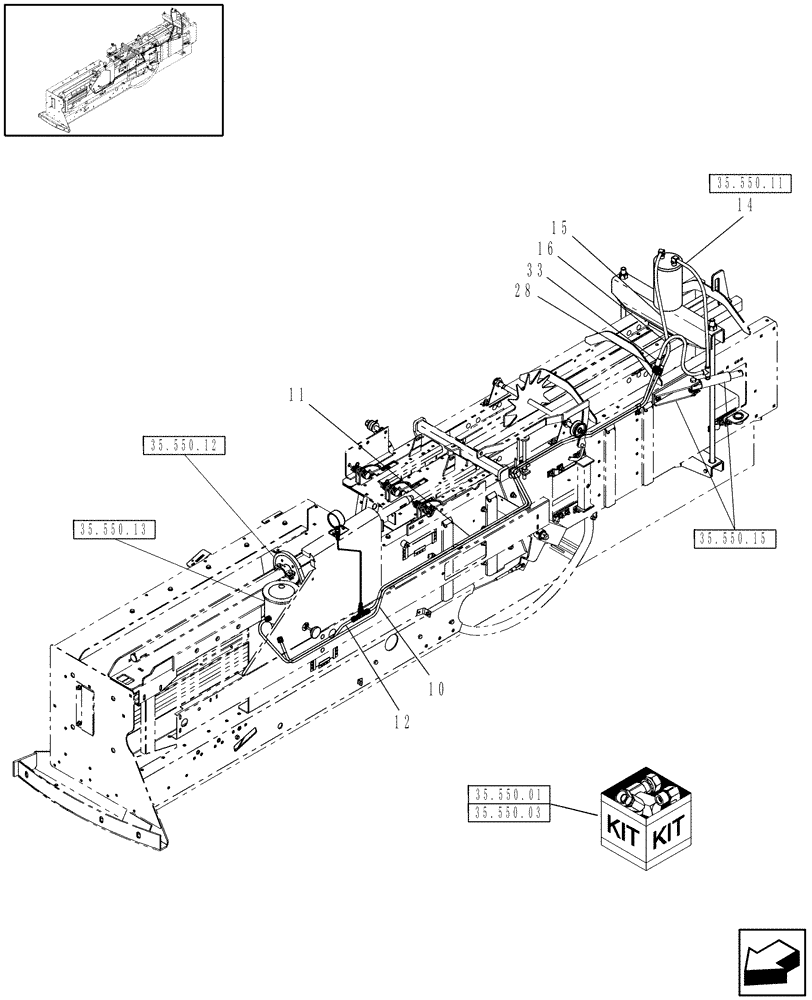

Схема запчастей Case IH SB551 - (35.550.10) - HYDRAULIC BALE TENSION (35) - HYDRAULIC SYSTEMS
33
35.550.11
35.550.03
35.550.01
35.550.13
35.550.12
35.550.15
15
16
12
14
11
28
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

87475638

HYD TUBE

1шт.

11

87475639

HYD TUBE,9.52 mm OD

1шт.

12

87475640

TUBE,9.52 mm OD

1шт.

14

86550672

FLEXIBLE HOSE

, Serial Range: -YAN105457

1шт.

14

1336840C1

HYDRAULIC HOSE

, Start Serial: YAN105458

1шт.

15

237732

HYDRAULIC HOSE,0.25" ID x 24.00"

, Serial Range: -YAN105457

2шт.

16

511404

FLEXIBLE HOSE

, Serial Range: -YAN105457

1шт.

16

107351A1

HOSE ASSY.

, Start Serial: YAN105458

2шт.

28

9706918

HYD CONNECTOR,9/16" - 18 JIC x 1/4" - 18 NPT

, Serial Range: -YAN105457

2шт.

33

87052300

COUPLING,1/4" NPT x 1/4" NPT

, Serial Range: -YAN105457

1шт.
