(F.10.D[15]) - TOW BETWEEN AIR CART 3/4" HYDRAULIC HOSE REPLACEMENT

Запчасти Case IH ADX2230 (F.10.D[15]) - TOW BETWEEN AIR CART 3/4" HYDRAULIC HOSE REPLACEMENT F - Frame Positioning

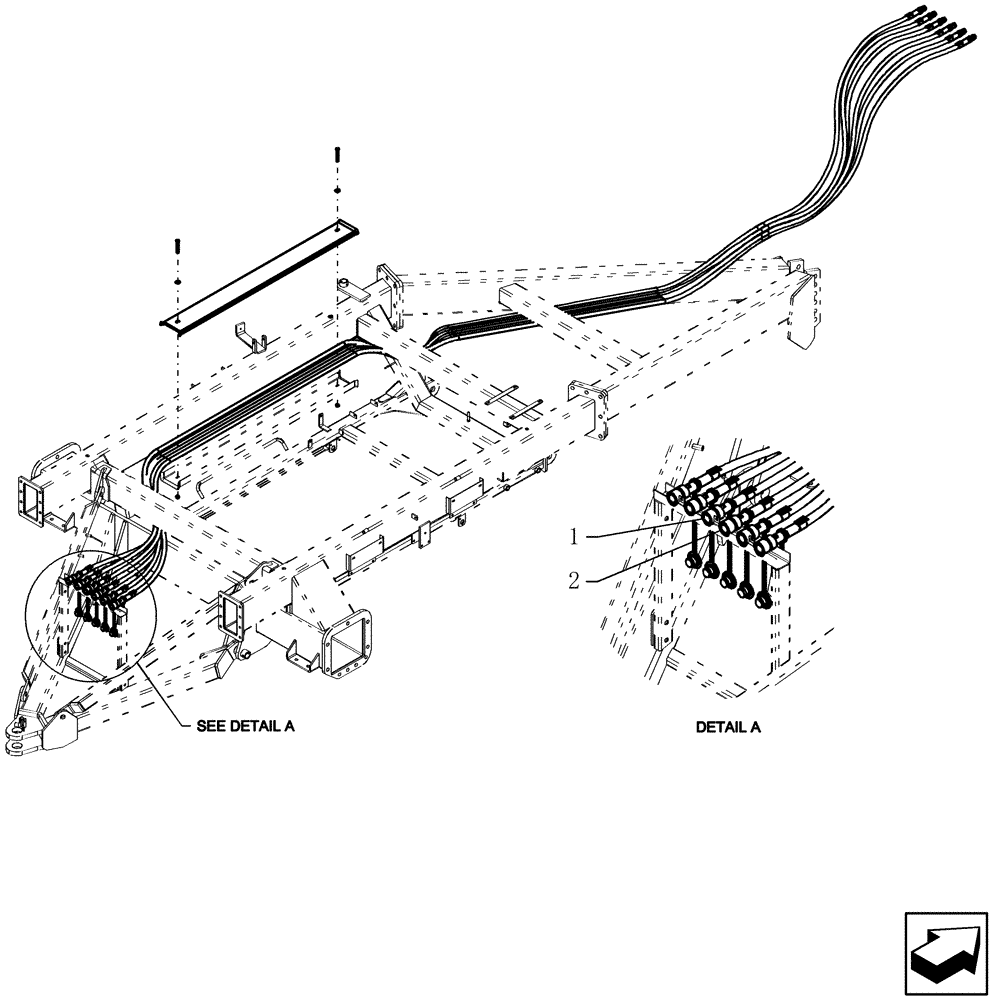

Схема запчастей Case IH ADX2230 - (F.10.D[15]) - TOW BETWEEN AIR CART 3/4" HYDRAULIC HOSE REPLACEMENT F - Frame Positioning
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87505151

HOSE

assembly .75 x 292 depth pressure

1шт.

2

87505152

HOSE

assembly .75 x 292 depth return

1шт.

Выбрано товаров: 2
