(D.13.B[12]) - REAR TIRES - DUALS

Запчасти Case IH ADX3360 (D.13.B[12]) - REAR TIRES - DUALS D - Travel

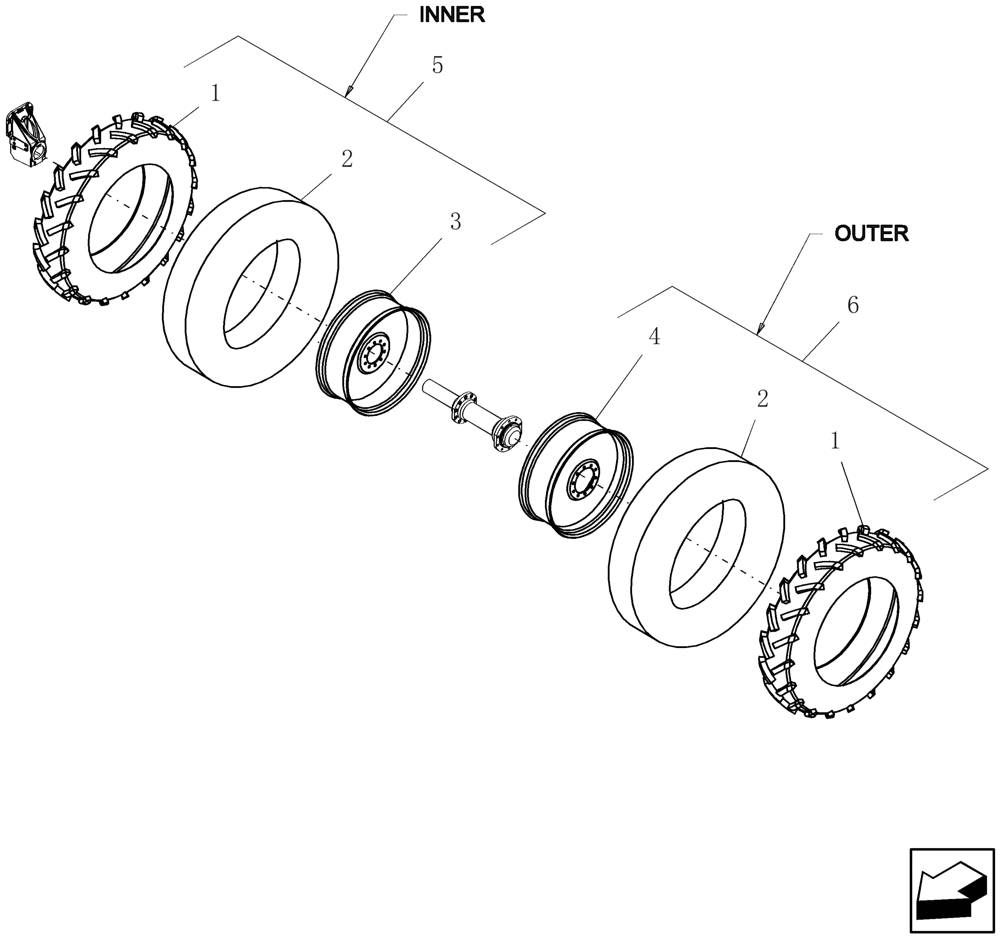

Схема запчастей Case IH ADX3360 - (D.13.B[12]) - REAR TIRES - DUALS D - Travel
1
5
4
2
6
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

51200895

TYRE/TIRE

18.4 x 38 - 8 ply

2шт.

Purchase Locally

1шт.

2

9263

TIRE TUBE

16.9/18.4r38 for 18.4 x 38 dyna torque ii

2шт.

3

87399168

RIM

15lLX38 10 hole +0" offset

1шт.

4

87399152

RIM

W16AX38 10 hole -4" offset

1шт.

5

NSS

NOT SOLD SEPARAT

Wheel, tire and valve assemblies are not sold separately

1шт.

6

NSS

NOT SOLD SEPARAT

Wheel, tire and valve assemblies are not sold separately

1шт.
