1
1016232

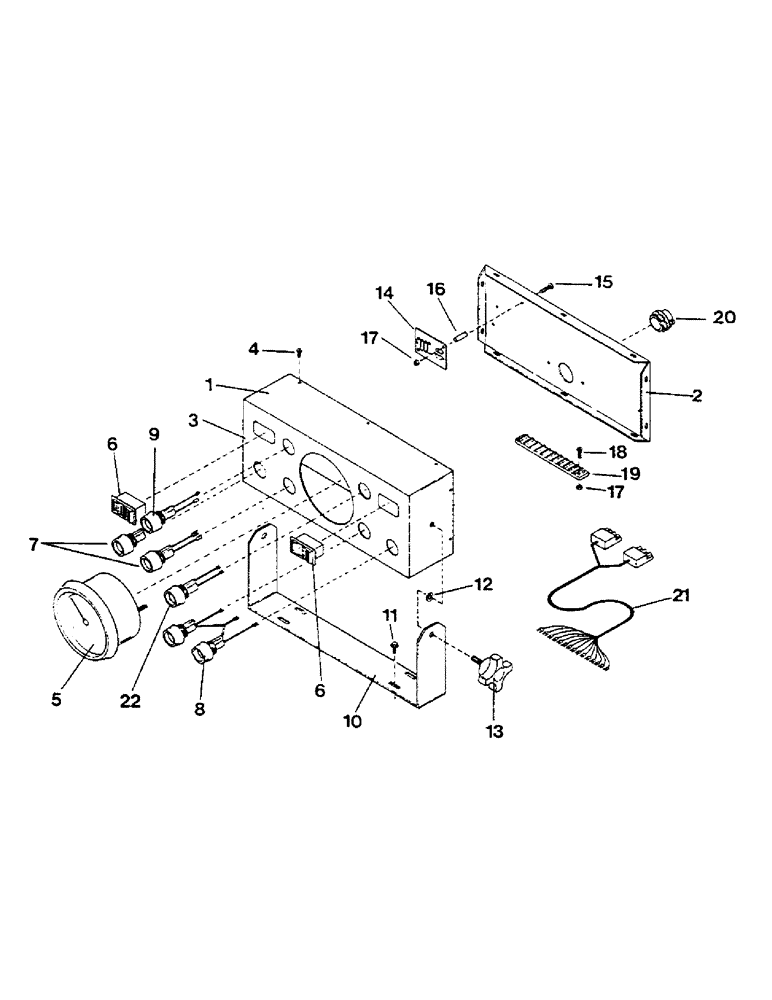

INSTRUMENT BOX
1шт.
2
1016230
BACK PANEL
1шт.
3
1016299
DECAL, instrument panel
1шт.
4
1016335
SELF-TAP SCREW,1/2" - 20 x 1.406"
#6 x 1/4", pan head self tapping
10шт.
5
1016068
METER
TACHOMETER
1шт.
6
1016291
SWITCH
rocker
2шт.
7
1016290
LIGHT
LIGHT, indicator
2шт.
8
1016329
ELECTRICAL WIRE
LIGHT ASSEMBLY, water & oil
1шт.
9
1016328
ELECTRICAL WIRE
LIGHT ASSEMBLY, clutch
1шт.
10
1016307
BRACKET
mounting
1шт.
11
100862
GASKET
SCREW, #10 x 1/2", self tapping
4шт.
12
100979
SELECTOR
2шт.
13
1016346
KNOB
ASSEMBLY
2шт.
14
1016200
BOARD
CIRCUIT BOARD ASSEMBLY
1шт.
15
1016333
SCREW
#6 x 1", round head slotted
2шт.
16
1016331
SPACER
2шт.
17
1015483
NUT
hex, #6
6шт.
18
1016334
SCREW
#6 x 1/2", round head slotted
4шт.
19
1016308
STRIP, connector
1шт.
20
1016332
CONNECTOR, box
1шт.
21
1016275
HARNESS
WIRING HARNESS, instrument box
1шт.
22
1016641
LIGHT ASSY.
LIGHT, indicator
1шт.
