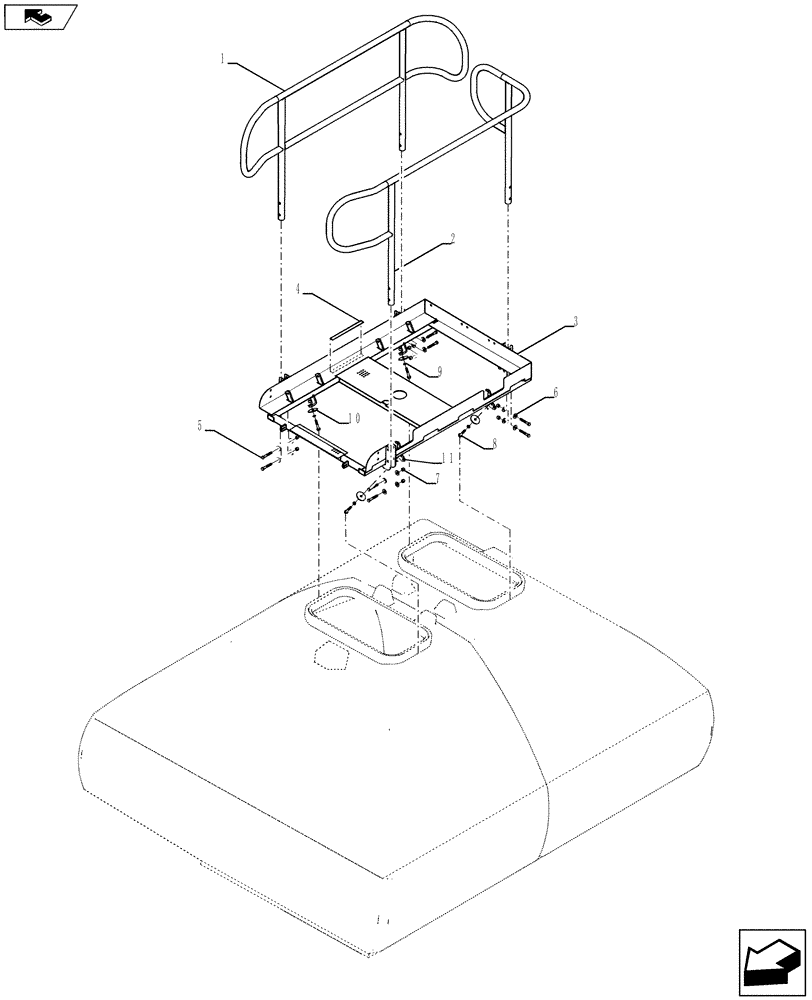

Запчасти Case IH 2280 (39.100.03[02]) - PLATFORN ASSEMBLY (2 TANK) (07/2011 +) (39) - FRAMES AND BALLASTING

1

84248627

HANDRAIL

Assembly, 2 Tank, RH

1шт.

2

84258491

HANDRAIL

Assembly, 2 Tank, LH

1шт.

3

84248761

PLATFORM

Assembly, Base, 2 Tank, PNTD Black

1шт.

4

84300010

STRIP

Anti-Slip. 305mm Long

1шт.

5

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2-13X3-1/4 GR5 ZND 0.5625 X 1.375 X 0.109 CST ZND Prev Torque, All Mtl 1/2-13 GR B ZN

8шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

0.5625 X 1.375 X 0.109 CST ZND

16шт.

7

9636698

NUT,1/2"-13, GB

Prev Torque, All Mtl 1/2-13 GR B ZN

8шт.

8

419988A1

BOLT

0.375 X 2 UNC GR2 HH YZD 0-ALL TH

4шт.

9

425034A1

RUBBER WASHER

Rubber Washer

4шт.

10

9637692

NUT,3/8"-16, GB

Prev Torque, All Mtl 3/8-16 Gr B ZN

4шт.

11

8772

WASHER

Washer, Poly 0.375 I.D.

4шт.
