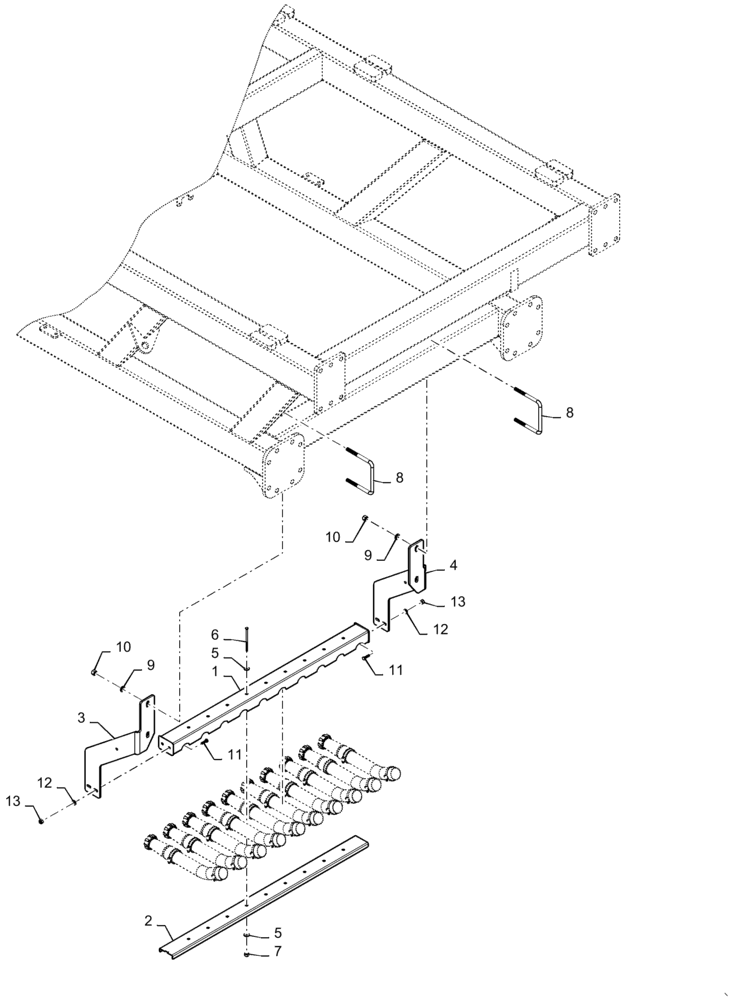

Запчасти Case IH 2355 (61.904.AB[16]) - METERING SEED TUBE MOUNT, 350, 435 BUSHEL 6 RUN, 555 BUSHEL 7 RUN, 350, 435, 555 BUSHEL 8 RUN SINGLE SHOOT, TOW BETWEEN (61) - METERING SYSTEM

1

47602947

BRACKET

Tube, 10 Run

1шт.

2

47548964

TUBE

Mount, 10 Run

1шт.

3

47602955

PLATE

Tube Mount

1шт.

4

47602957

PLATE

Tube Mount

1шт.

5

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

18шт.

6

300807

BOLT,Hex, M8 x 140, 8.8

9шт.

7

68841

NUT,M8 x 1.25, Cl 8

9шт.

8

47534143

U-BOLT,M16 x 2, Square, 180mm W x 175mm L

2шт.

9

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

10

146988

LOCK NUT,M16 x 2, Cl 8

4шт.

11

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

12

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
