(61.904.AC[01]) - TANK PRESSURE, 350 TOE BEHIND, DOUBLE SHOOT

Запчасти Case IH 2355 (61.904.AC[01]) - TANK PRESSURE, 350 TOE BEHIND, DOUBLE SHOOT (61) - METERING SYSTEM

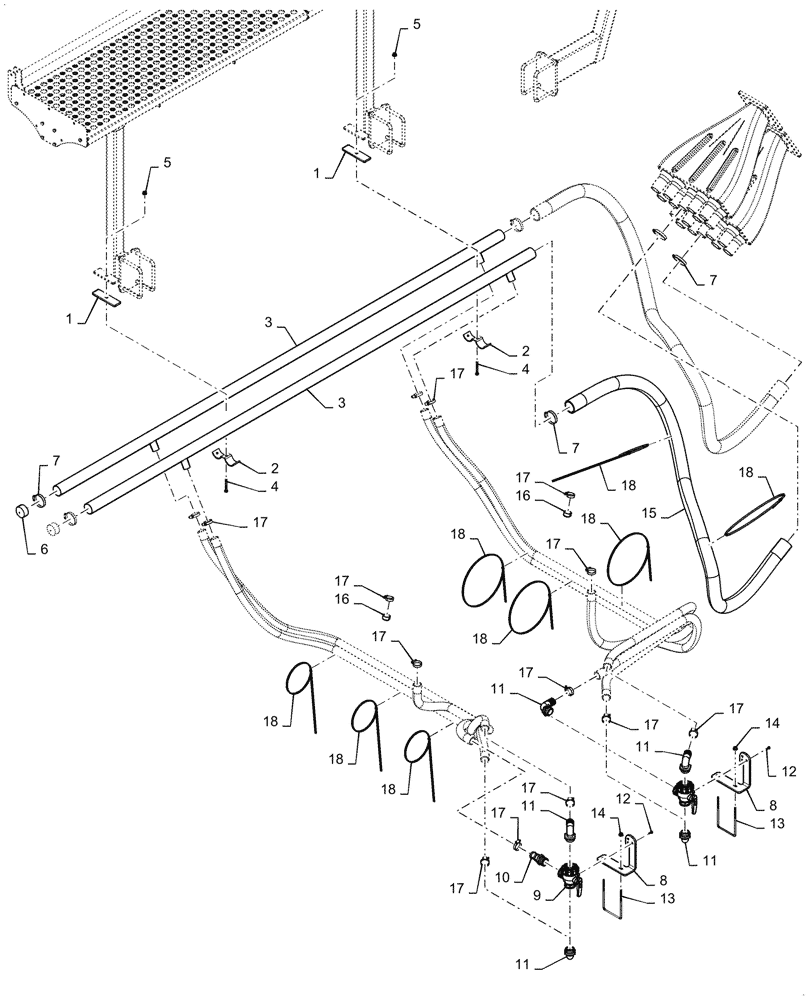

Схема запчастей Case IH 2355 - (61.904.AC[01]) - TANK PRESSURE, 350 TOE BEHIND, DOUBLE SHOOT (61) - METERING SYSTEM
3
13
2
17
7
15
17
7
18
17
17
17
4
8
17
11
5
11
9
18
17
18
12
11
14
14
13
17
12
6
2
8
10
18
1
17
18
5
16
18
7
1
17
18
18
11
11
3
17
17
16
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47615447

PLATE

Mounting Black

2шт.

2

VF-503

CLAMP

Tube

2шт.

3

47614338

TUBE

Pressure

2шт.

4

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

3шт.

5

86619802

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

6

4731

CAP

2.5" ID

2шт.

7

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

6шт.

8

47602941

BRACKET

Pressurization Valve Black

2шт.

9

47602986

VALVE BODY

3 Way

2шт.

10

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1шт.

11

87419378

FITTING,1-1/2" Male Thread x 1-1/2" 90 Degree Hose Barb

1.5" x 1.5" Hose Barb

5шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

13

47602771

U-BOLT

M8

2шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

15

47688565

HOSE, BULK

50 Foot Bulk Roll Cut To Length

1шт.

16

8060

CAP

38.1 x 19.05 mm

2шт.

17

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

14шт.

18

87557086

CABLE TIE

30"

12шт.
