(27.550.AJ[04]) - 760, 950 BUSHEL, HEAVY WIDE REAR AXLE WITH DUAL TIRES

Запчасти Case IH 4765 (27.550.AJ[04]) - 760, 950 BUSHEL, HEAVY WIDE REAR AXLE WITH DUAL TIRES (27) - REAR AXLE SYSTEM

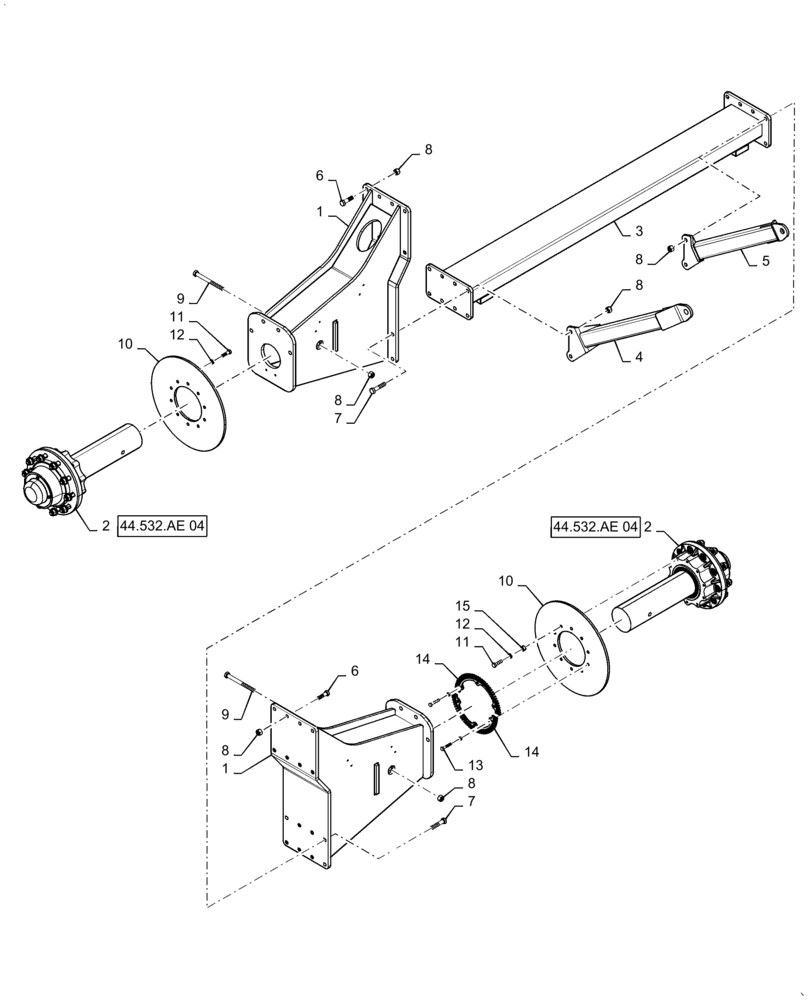

Схема запчастей Case IH 4765 - (27.550.AJ[04]) - 760, 950 BUSHEL, HEAVY WIDE REAR AXLE WITH DUAL TIRES (27) - REAR AXLE SYSTEM
3
7
10
2
1
15
7
44.532.ae 04
9
13
1
5
4
8
8
8
8
11
12
14
6
2
44.532.ae 04
12
10
14
11
8
9
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47575918

FRAME

Wide Rear Axle

2шт.

2

47503709

HUB

Rear Axle

2шт.

See Fig 44.532.AE 04 For Service Parts

1шт.

3

47514063

FRAME

Rear Axle

1шт.

4

47537365

STRUT

LH Axle Brace

1шт.

5

47537368

STRUT

RH Axle Brace

1шт.

6

440588

BOLT,Hex, M20 x 70, 8.8

28шт.

7

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

4шт.

8

725637

NUT,M20 x 2.5, Cl 8

34шт.

9

381523

BOLT,Hex, M20 x 2.5 x 210mm OAL, Cl 8.8

2шт.

10

47663572

ROTOR

Brake, Single Wheel

2шт.

11

84545650

BOLT

14шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

20шт.

13

280133

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

6шт.

14

47650130

SPROCKET

Half Ring

2шт.

15

47697043

SPACER

Speed Sensor

6шт.
