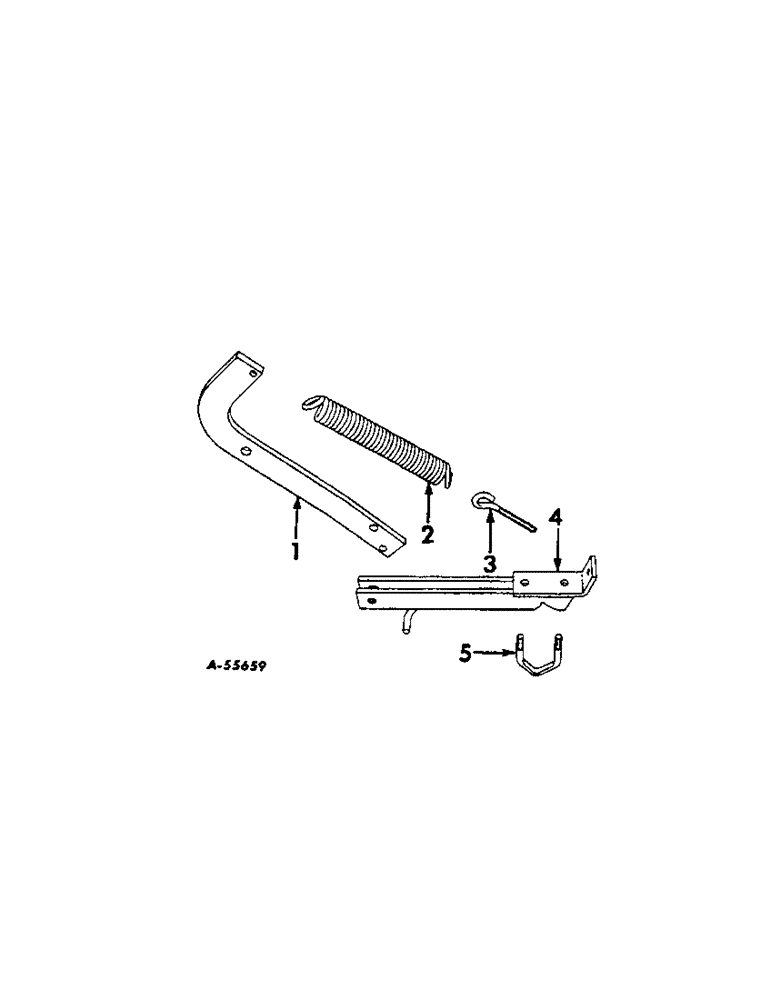

Запчасти Case IH DRY (A-116) - DRY FERTILIZERS, ATTACHING ARM SPRING LOADER APPLICATOR

1

526957R1

ARM, left pivot

1шт.

1

526958R1

ARM, right pivot

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

608704R1

WASHER, 21/32 x 1-1/4 x 16 ga C-Z

2шт.

2

PO27

SPRING

pressure, 1-1/2 in. OD, length 10 in. 34-1/2 coils

1шт.

3

PO15076

EYEBOLT, spring

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

4

526951R91

BRACKET ASSY, attaching

1шт.

5

526956R1

U-BOLT, attaching

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
