(10-005) - WET BOOM, 3.0, RH, INNER

Запчасти Case IH 437 (10-005) - WET BOOM, 3.0, RH, INNER Wet Kit

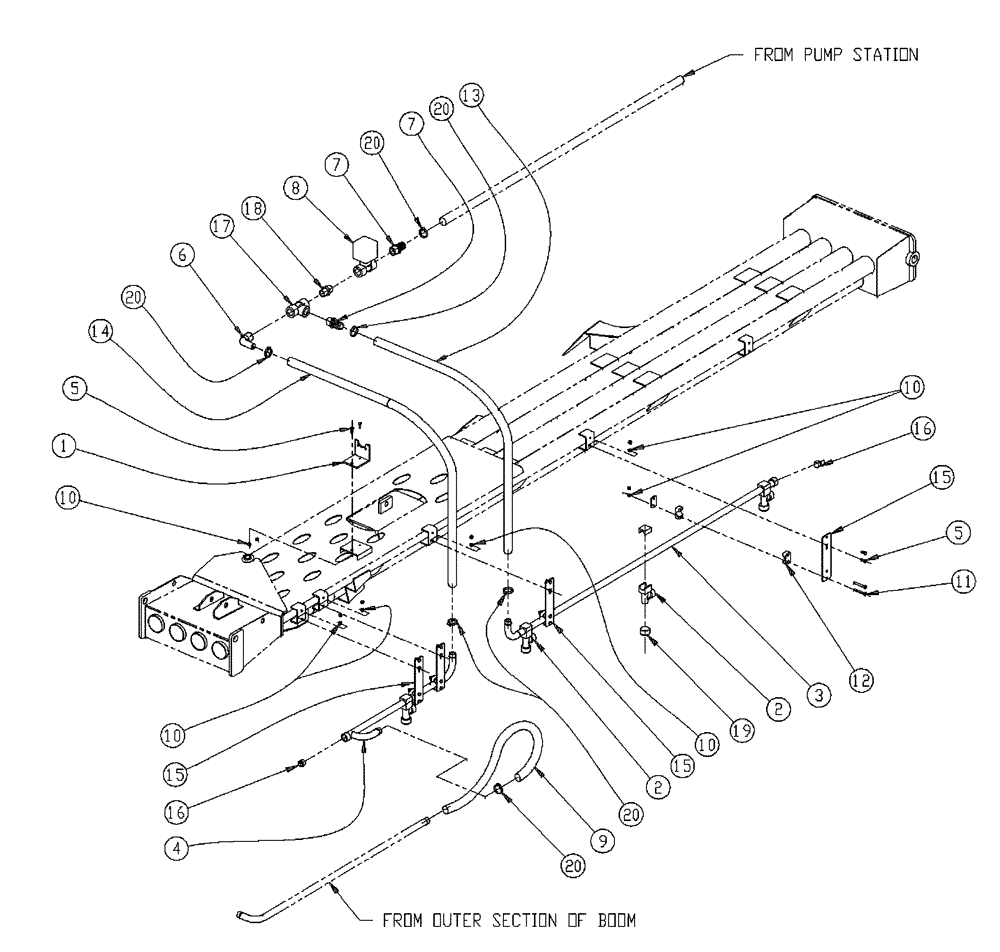

Схема запчастей Case IH 437 - (10-005) - WET BOOM, 3.0, RH, INNER Wet Kit
11
20
7
10
15
16
15
20
10
7
5
10
18
6
10
19
12
2
3
13
1
14
20
15
17
16
20
20
9
2
5
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

2

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

4шт.

3

BN300290

BAR

Spray, Inner

1шт.

4

BN300291

BAR

Spray, Inner, End, RH

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

10шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

7

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

8

BN53495

VALVE

PP-Ball (2-Way) ELE

1шт.

9

BN53912

HOSE

1" ID EPDM x 38"

1шт.

10

BN55359

LOCK NUT,1/4"-20, SS

18шт.

11

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

12

BN65324

CLAMP

1" OD, Poly

4шт.

13

BN66856

HOSE

1" EPDM x 25.00"

1шт.

14

BN66859

HOSE

1" EPDM x 23.00"

1шт.

15

BN68981

BRACKET

Spray Bar

4шт.

16

BN73553

PLUG

3/4" NPT, Poly

2шт.

17

BN73629

TEE

1" Poly Pipe

1шт.

18

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

19

BN74619

CAP

with gasket tee jet black

4шт.

20

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.
