(10-017) - WET BOOM, 2.5, LH, INNER

Запчасти Case IH 437 (10-017) - WET BOOM, 2.5, LH, INNER Wet Kit

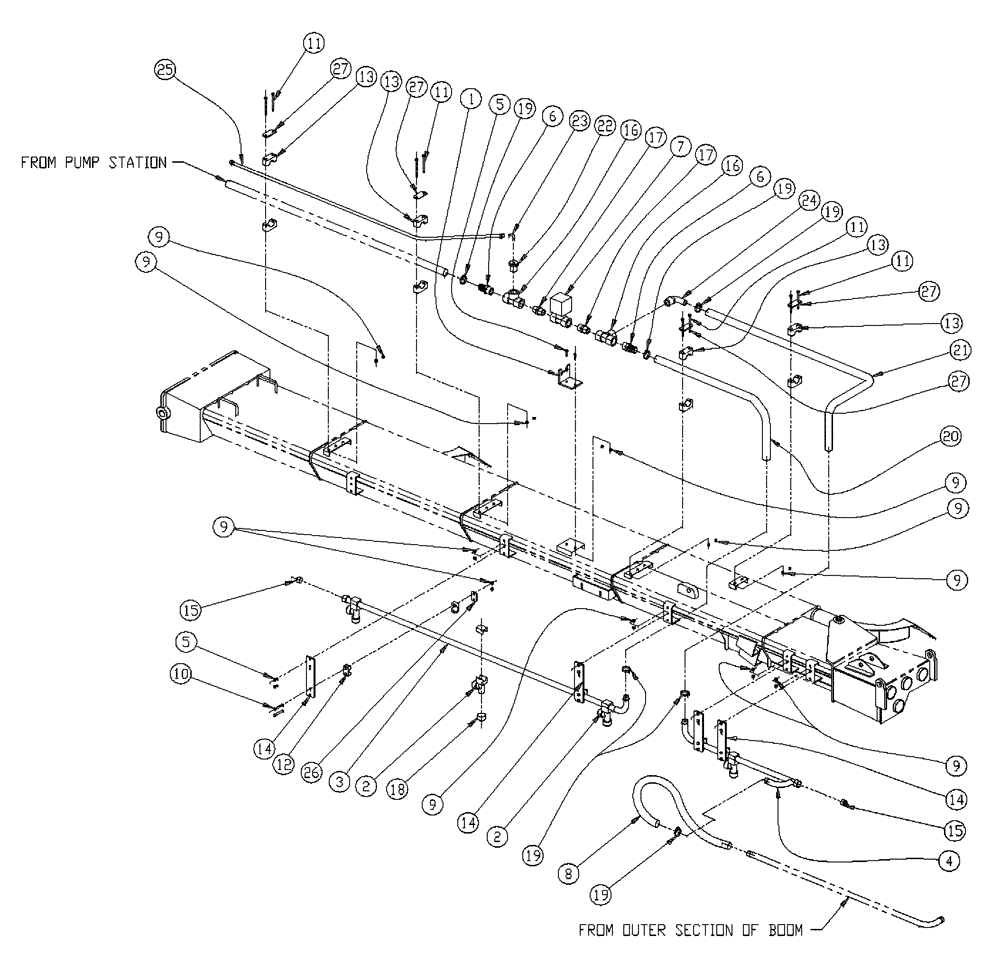

Схема запчастей Case IH 437 - (10-017) - WET BOOM, 2.5, LH, INNER Wet Kit
25
20
19
15
2
22
8
13
2
1
14
6
9
12
11
18
4
14
5
9
27
23
17
9
21
10
19
16
3
14
11
15
27
5
27
19
26
17
6
13
9
9
27
9
24
7
11
13
19
16
19
13
11
9
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

2

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

4шт.

3

BN303268

BAR

Inner

1шт.

4

BN300319

BAR

Spray, Inner, End, LH

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

10шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN53495

VALVE

PP-Ball (2-Way) ELE

1шт.

8

BN53912

HOSE

1" ID EPDM x 38"

1шт.

9

BN55359

LOCK NUT,1/4"-20, SS

26шт.

10

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

11

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

12

BN65324

CLAMP

1" OD, Poly

4шт.

13

BN67494

CLAMP

Single, 1.5 Diameter

4шт.

14

BN68981

BRACKET

Spray Bar

4шт.

15

BN73553

PLUG

3/4" NPT, Poly

2шт.

16

BN73629

TEE

1" Poly Pipe

2шт.

17

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

18

BN74619

CAP

with gasket tee jet black

4шт.

19

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.

20

BN53756

HOSE,42.00"

1шт.

21

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

22

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

23

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

24

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

25

BN303734

HOSE,9.50 mm ID x 307.00 mm

EPDM

1шт.
