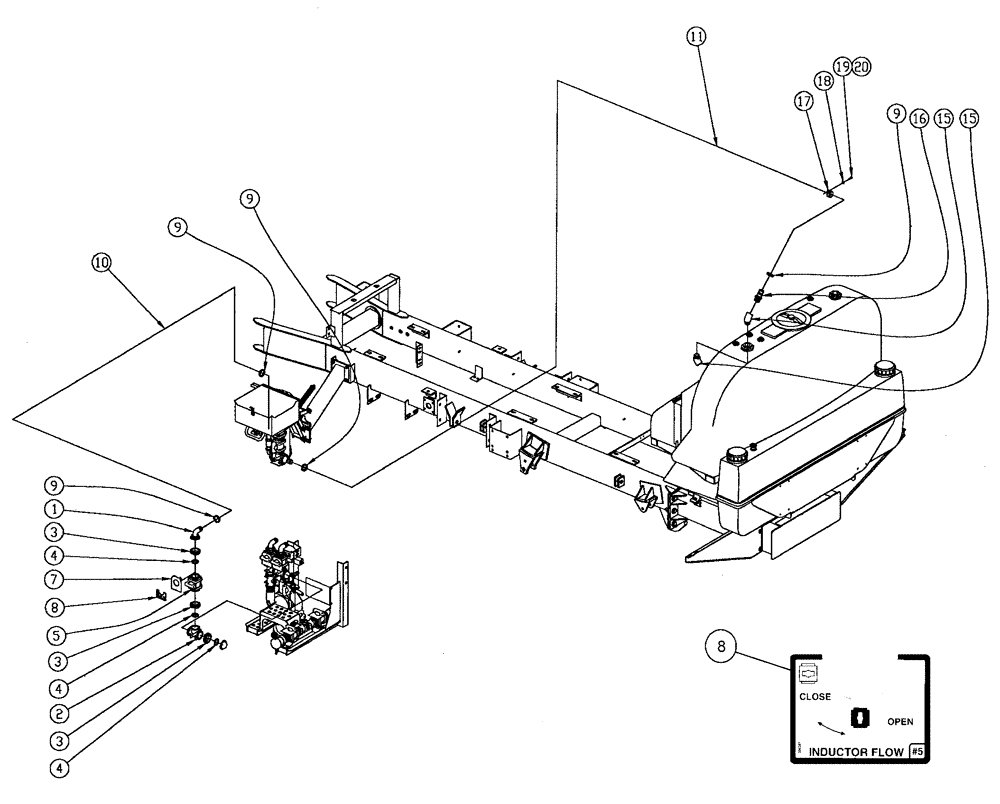

Запчасти Case IH 438 (12-004) - INDUCTOR PLUMBING Reload Control & Chemical Eductor

1

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

1шт.

2

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

5

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

2" Flange, W/T Handle

1шт.

7

BN320997

BRACKET

Decal Mount (SS)

1шт.

8

BN306587

DECAL

Inductor Flow

1шт.

9

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

10

BN312072

HOSE,1.25" ID x 135.00"

1шт.

11

BN315700

HOSE,1.50" ID x 360.00"

EPDM

1шт.

15

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.

16

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

17

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

18

BN50142

WASHER,5/16", Stainless Steel

1шт.

19

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

20

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.
