(11-033) - WET BOOM, 3.0”, REAR TUBE, 60’

Запчасти Case IH 438 (11-033) - WET BOOM, 3.0”, REAR TUBE, 60’ Wet Kit

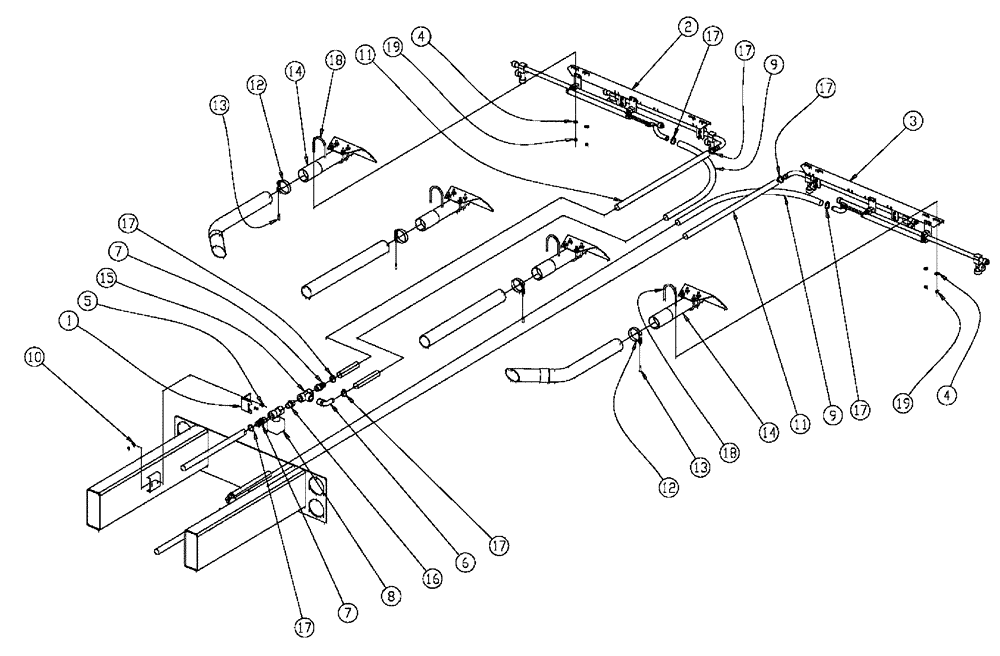

Схема запчастей Case IH 438 - (11-033) - WET BOOM, 3.0”, REAR TUBE, 60’ Wet Kit
1
17
6
17
19
4
12
10
9
12
9
11
13
17
16
17
14
17
18
3
17
8
19
2
5
7
15
4
7
18
13
11
14
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

2

BN301636

BAR

Spray Group, Extend, RH

1шт.

See Fig. 11-012

1шт.

3

BN301637

BAR

Spray Group, Extend, LH

1шт.

See Fig. 11-014

1шт.

4

BN50146

WASHER,3/8", Stainless

8шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

8

87389559

VALVE

Electric, 1" Ball

2шт.

9

BN53756

HOSE,42.00"

2шт.

10

BN55359

LOCK NUT,1/4"-20, SS

4шт.

11

BN66856

HOSE

1" EPDM x 25.00"

2шт.

12

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

4шт.

13

BN68086

CAP

RND, Rubber, .25 ID x 1.00

4шт.

14

BN65560

TUBE

Tube, Extension, 14.75

4шт.

15

BN73629

TEE

1" Poly Pipe

2шт.

16

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

17

BN310447

HOSE CLAMP

#20, Stainless Steel

10шт.

18

BN68492

U-BOLT

3/8 - 16 UNC x 3, SS

4шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.
