(10-009) - WET BOOM, 3.0", RR TUBE, 60

Запчасти Case IH 810 (10-009) - WET BOOM, 3.0", RR TUBE, 60 Wet Kit

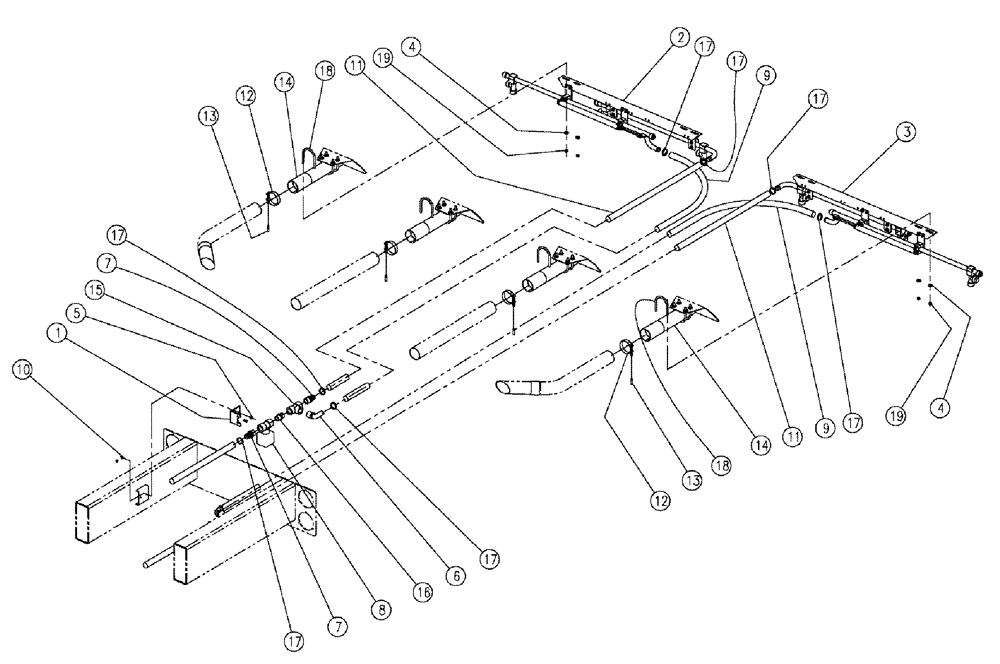

Схема запчастей Case IH 810 - (10-009) - WET BOOM, 3.0", RR TUBE, 60 Wet Kit
12
11
17
1
18
17
10
5
14
17
16
18
17
17
6
8
17
12
7
4
7
19
9
13
3
4
15
11
9
2
19
14
13
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

2

BN301636

BAR

Spray Group, Extend, RH

1шт.

See Fig. 10-013

1шт.

3

BN301637

BAR

Spray Group, Extend, LH

1шт.

See Fig. 10-015

1шт.

4

BN50138

WASHER,1/4", SS

8шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

8

87389559

VALVE

Electric, 1" Ball

2шт.

9

BN53756

HOSE,42.00"

2шт.

10

BN55359

LOCK NUT,1/4"-20, SS

12шт.

11

BN66856

HOSE

1" EPDM X 25.00"

2шт.

12

87271751

CLAMP

Hi-Torque

4шт.

13

BN68086

CAP

RND, RUBBER, .25 ID X 1.00

4шт.

14

BN68393

TUBE

W/M, EXT, 14.50, 2.50

4шт.

15

BN73629

TEE

1" Poly Pipe

2шт.

16

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

17

BN310447

HOSE CLAMP

#20, Stainless Steel

10шт.

18

87266747

U-BOLT

1/4"-20 x 2.5 ID x 3"

4шт.
