(39.130.09) - 60 BOOM, RH, INNER, 2-1/2" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE

Запчасти Case IH 810 (39.130.09) - 60 BOOM, RH, INNER, 2-1/2" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE (39) - FRAMES AND BALLASTING

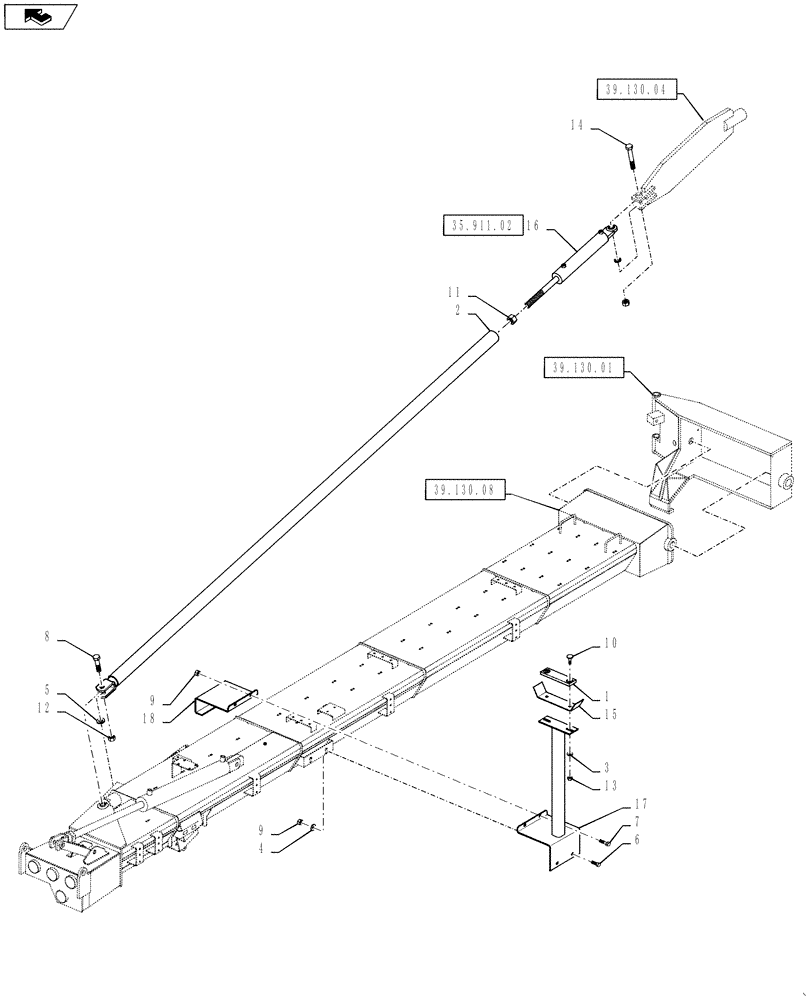

Схема запчастей Case IH 810 - (39.130.09) - 60 BOOM, RH, INNER, 2-1/2" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE (39) - FRAMES AND BALLASTING
7
home
18
13
4
1
9
15
9
11
6
2
16
17
39.130.04
35.911.02
39.130.08
39.130.01
3
14
8
5
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

1шт.

2

BN35892

ARM

Suspension

1шт.

3

87310596

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

3/8", DOR

2шт.

4

BN50146

WASHER,3/8", Stainless

2шт.

5

BN50178

WASHER

1.25 OD X .75 ID X 10 GA

2шт.

6

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

7

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

8

87310193

BOLT,3/4"-10 X 3.00", GR5, DOR

1шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

10

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

2шт.

11

87310319

JAM NUT,1"-14, G8

1шт.

12

87310323

NUT,3/4"-10, GR B, DOR

2шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

14

87310197

BOLT,3/4"-10 x 5", G5, DOR

1шт.

15

BN65473

SUPPORT

Boom Tip

1шт.

16

87266447

CYLINDER,Double Acting, 25.4mm Rod, 254mm Stroke

Boom Tilt, 2.5 x 10 x 1, Complete

1шт.

See Fig 35.911.02 For Service Parts

1шт.

17

BN69278

SUPPORT

Tip-Over

1шт.

18

BN69280

SUPPORT

Tip-Over

1шт.
