(39.130.13) - 60 BOOM, LH, INNER, 3" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE

Запчасти Case IH 810 (39.130.13) - 60 BOOM, LH, INNER, 3" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE (39) - FRAMES AND BALLASTING

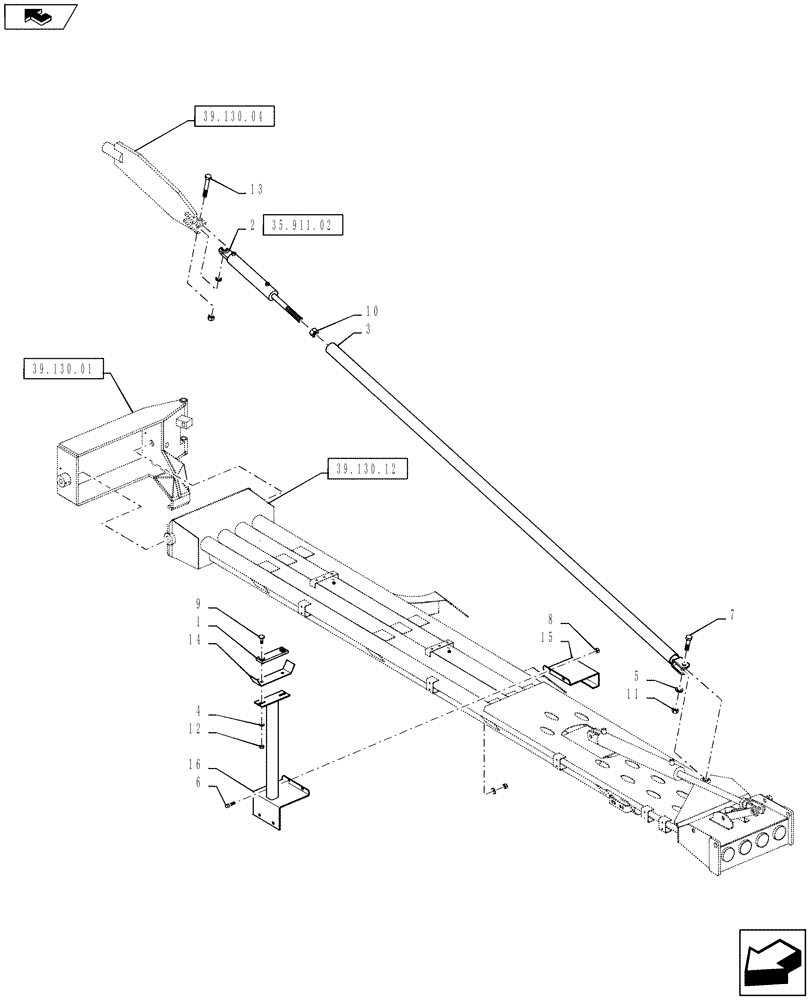

Схема запчастей Case IH 810 - (39.130.13) - 60 BOOM, LH, INNER, 3" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE (39) - FRAMES AND BALLASTING
1
3
16
10
2
5
8
15
12
14
7
9
4
13
39.130.04
35.911.02
39.130.12
39.130.01
11
home
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

1шт.

2

87266447

CYLINDER,Double Acting, 25.4mm Rod, 254mm Stroke

Boom Tilt, 2.5 x 10 x 1, Complete

1шт.

See Fig 35.911.02 For Service Parts

1шт.

3

BN35892

ARM

Suspension

1шт.

4

BN50142

WASHER,5/16", Stainless Steel

2шт.

5

87528981

WASHER,0.81" ID x 1.5" OD x 0.14" Thk

2шт.

6

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

7

87310193

BOLT,3/4"-10 X 3.00", GR5, DOR

1шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

9

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

2шт.

10

87310319

JAM NUT,1"-14, G8

1шт.

11

87310323

NUT,3/4"-10, GR B, DOR

2шт.

12

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

13

87310197

BOLT,3/4"-10 x 5", G5, DOR

1шт.

14

BN65473

SUPPORT

Boom Tip

1шт.

15

BN68662

BASE

Boom Tip Support

1шт.

16

BN68663

SUPPORT

Boom Tip

1шт.
