(39.130.20) - 70 BOOM, LH, INNER, 2-1/2" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE

Запчасти Case IH 810 (39.130.20) - 70 BOOM, LH, INNER, 2-1/2" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE (39) - FRAMES AND BALLASTING

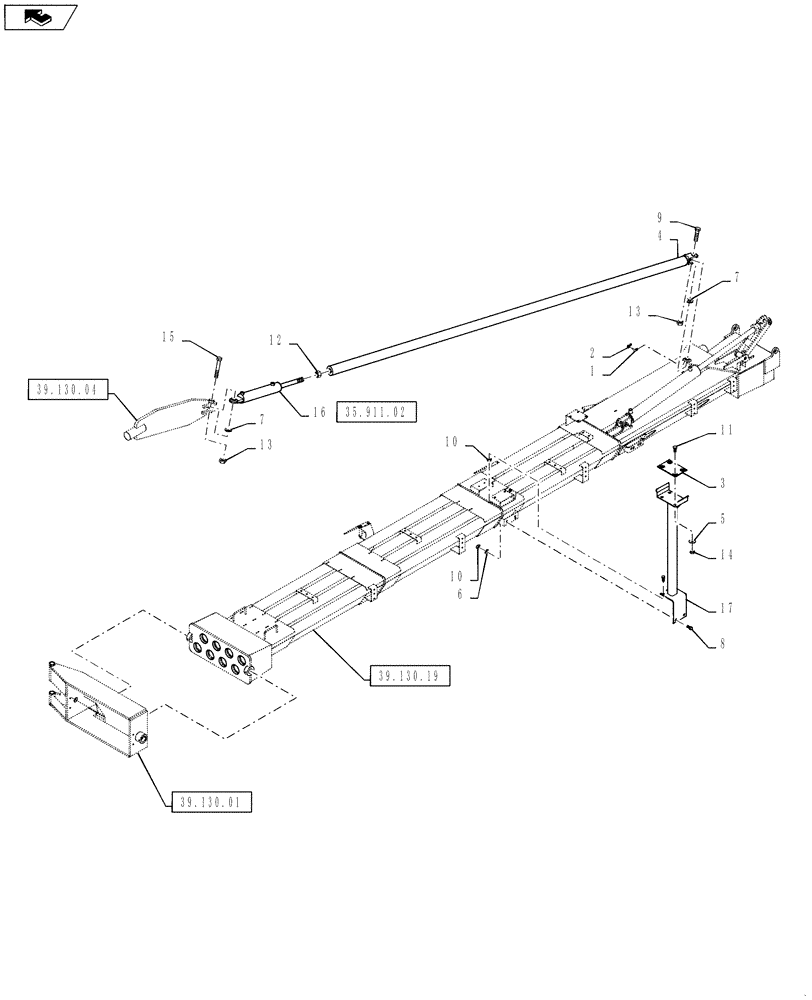

Схема запчастей Case IH 810 - (39.130.20) - 70 BOOM, LH, INNER, 2-1/2" TUBES, BOOM LEVEL AND OUTER BOOM CRADLE (39) - FRAMES AND BALLASTING
17
14
10
11
10
9
8
7
7
1
15
13
4
39.130.19
39.130.04
39.130.01
6
home
13
16
5
3
2
35.911.02
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

1шт.

2

BN69951

CAP

Grease

1шт.

3

BN315368

SLIDE

.19 X 6.25 X 4.13

1шт.

4

84512688

ARM

Suspension, 70'

1шт.

5

87310596

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

3/8", DOR

4шт.

6

BN50146

WASHER,3/8", Stainless

2шт.

7

87528981

WASHER,0.81" ID x 1.5" OD x 0.14" Thk

2шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

9

87310193

BOLT,3/4"-10 X 3.00", GR5, DOR

1шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

12

87310319

JAM NUT,1"-14, G8

1шт.

13

87310323

NUT,3/4"-10, GR B, DOR

2шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

15

87310197

BOLT,3/4"-10 x 5", G5, DOR

1шт.

16

87266447

CYLINDER,Double Acting, 25.4mm Rod, 254mm Stroke

Boom Tilt, 2.5 x 10 x 1, Complete

1шт.

See Fig 35.911.02 For Service Parts

1шт.

17

BN315304

SUPPORT

Tip-over, 70'

1шт.
