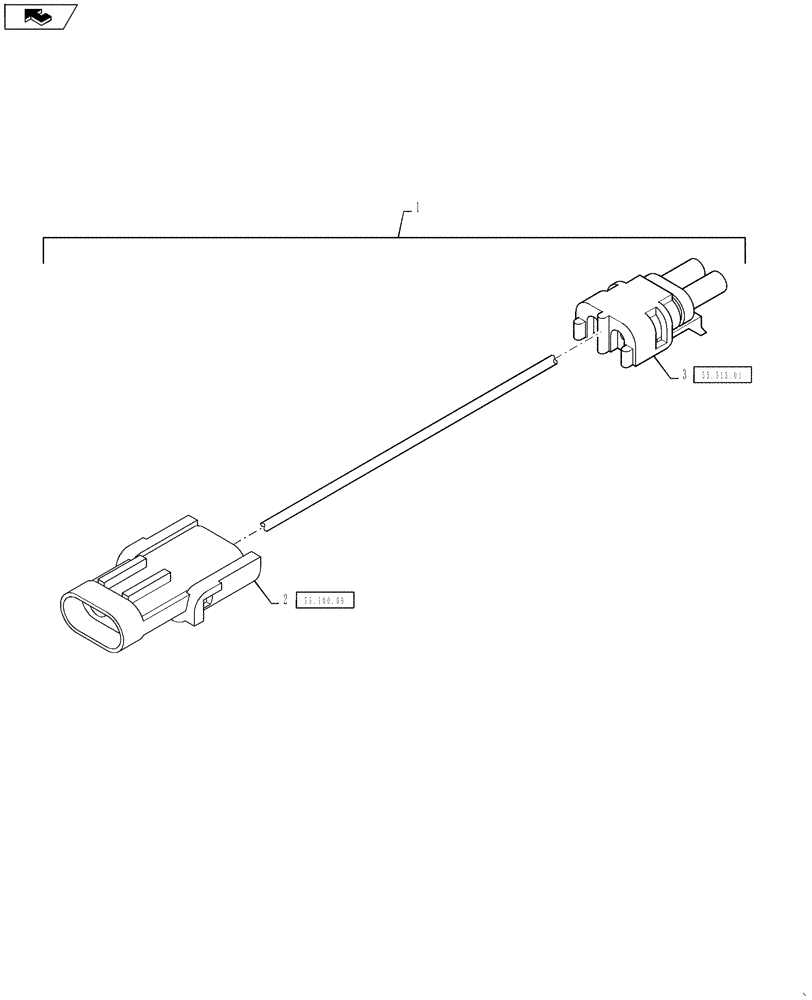

Запчасти Case IH 810 (55.100.10) - LH BOOM POSITION SWITCH HARNESS, 70 BOOM (55) - ELECTRICAL SYSTEMS

1

BN318447

WIRE HARNESS

Extension, LH Boom Position Switch, 70' Boom Only, Includes Ref 2 - 3

1шт.

2

245483C1

ELEC CONNECTOR,Male, 2 Pin

Boom Protect Harness Interface, JL

1шт.

2

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Boom Protect Harness Interface, JL

2шт.

2

225124C1

SEAL,2 - 2.9 mm2

Boom Protect Harness Interface, JL

2шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

LH Boom Position Switch, JLS

1шт.

3

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Boom Position Switch, JLS

2шт.

3

225124C1

SEAL,2 - 2.9 mm2

LH Boom Position Switch, JLS

2шт.
