(61.904.07) - HOPPER SKIRTING

Запчасти Case IH 810 (61.904.07) - HOPPER SKIRTING (61) - METERING SYSTEM

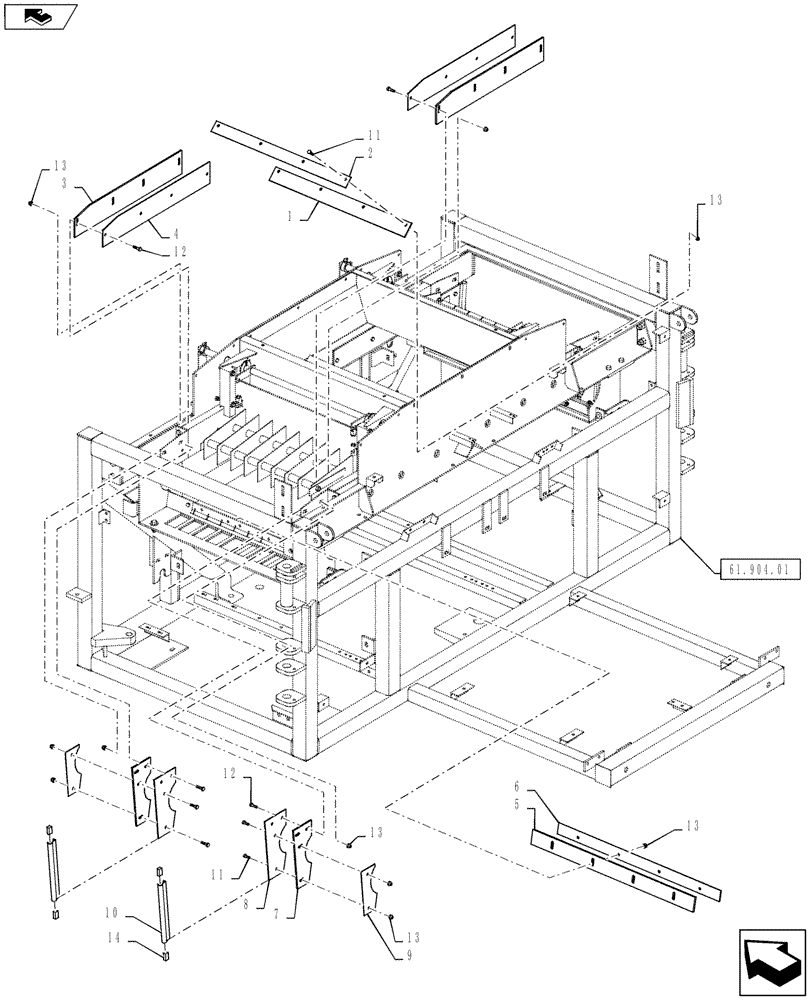

Схема запчастей Case IH 810 - (61.904.07) - HOPPER SKIRTING (61) - METERING SYSTEM
10
12
3
61.904.01
1
6
13
12
13
14
5
8
9
home
13
11
4
11
7
13
13
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307227

SEAL

Center, Conveyor

2шт.

2

BN307228

STRAP

Center Seal, Conveyor

2шт.

3

BN307229

SEAL

Side, Conveyor

4шт.

4

BN307230

STRAP

Side Seal, Conveyor

4шт.

5

BN307231

SEAL

Belt, Bottom

2шт.

6

BN307232

STRAP

Belt Seal, Bottom

2шт.

7

BN307233

SEAL

Belt, Side

4шт.

8

BN307234

STRAP

Belt Seal, Side

4шт.

9

BN307235

SUPPORT

Belt Seal, Side

4шт.

10

BN307236

DOOR SEAL

Seal, Divider Door

4шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

16шт.

12

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

24шт.

13

BN55359

LOCK NUT,1/4"-20, SS

48шт.

14

87267748

PLUG

Foam

8шт.
