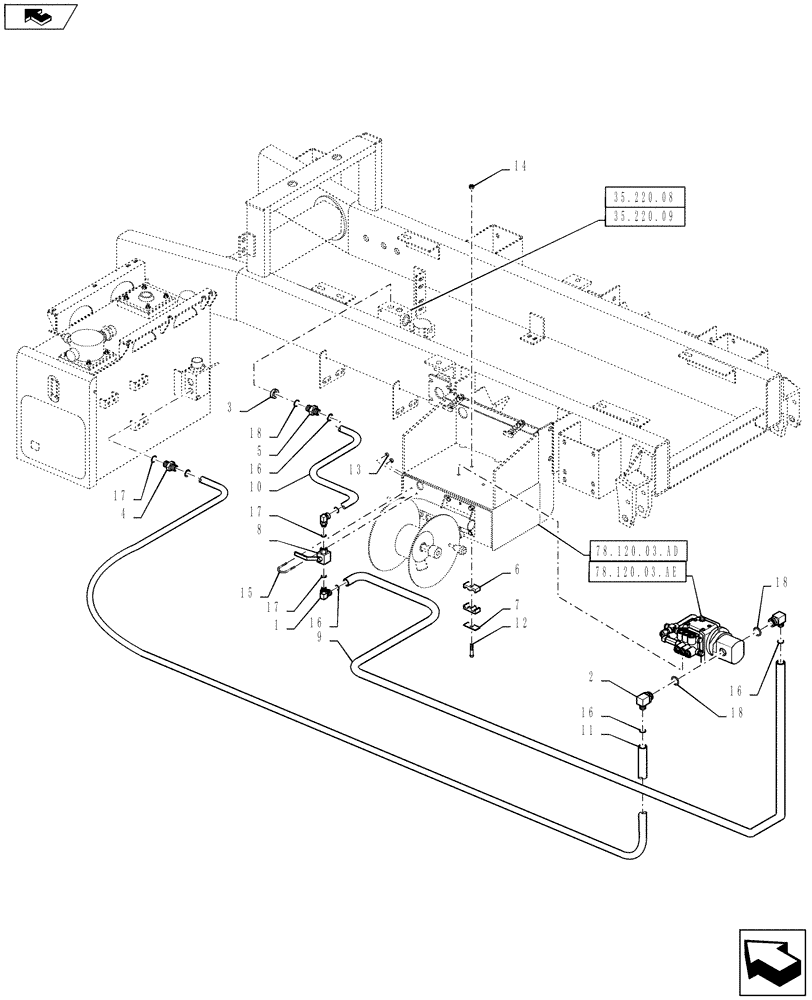

Запчасти Case IH 810 (78.120.03.AL) - PRESSURE WASHER HYDRAULIC GROUP (78) - SPRAYING

1

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

2шт.

2

BN302559

FITTING

13/16-16 ORFS x 7/8-14 ORB

2шт.

3

BN313223

ORIFICE

1/8 NPT X .125

1шт.

4

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

1шт.

5

BN313224

FITTING

13/16-16 ORFS x 7/8-14 ORB, With 1/8-27 NPT Internal Thread

1шт.

6

BN307913

CLAMP

Dual, 1/2 Pipe

1шт.

7

BN309484

PLATE

Top, Dual, Size 3

1шт.

8

BN311607

HYDRAULIC VALVE

2 Way

1шт.

9

BN311613

HOSE,27.50"

13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel x 1/2" ID x 27-1/2" Long, Pump to 2-Way Valve

1шт.

10

BN311708

HOSE

13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel Elbow x 1/2" ID x 63" Long, 2-Way Valve to Filter Manifold

1шт.

11

BN311709

HOSE

13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel Elbow x 1/2" ID x 132" Long, Pump to Chassis Return Manifold

1шт.

12

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

1шт.

13

BN55359

LOCK NUT,1/4"-20, SS

4шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.

15

BN68011

U-BOLT

BOLT "U" 1/4-20 SS, 1" pipe

2шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

6шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

3шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

3шт.
