(35.748.03) - 8" AUGER GATE CYLINDER

Запчасти Case IH 810 (35.748.03) - 8" AUGER GATE CYLINDER (35) - HYDRAULIC SYSTEMS

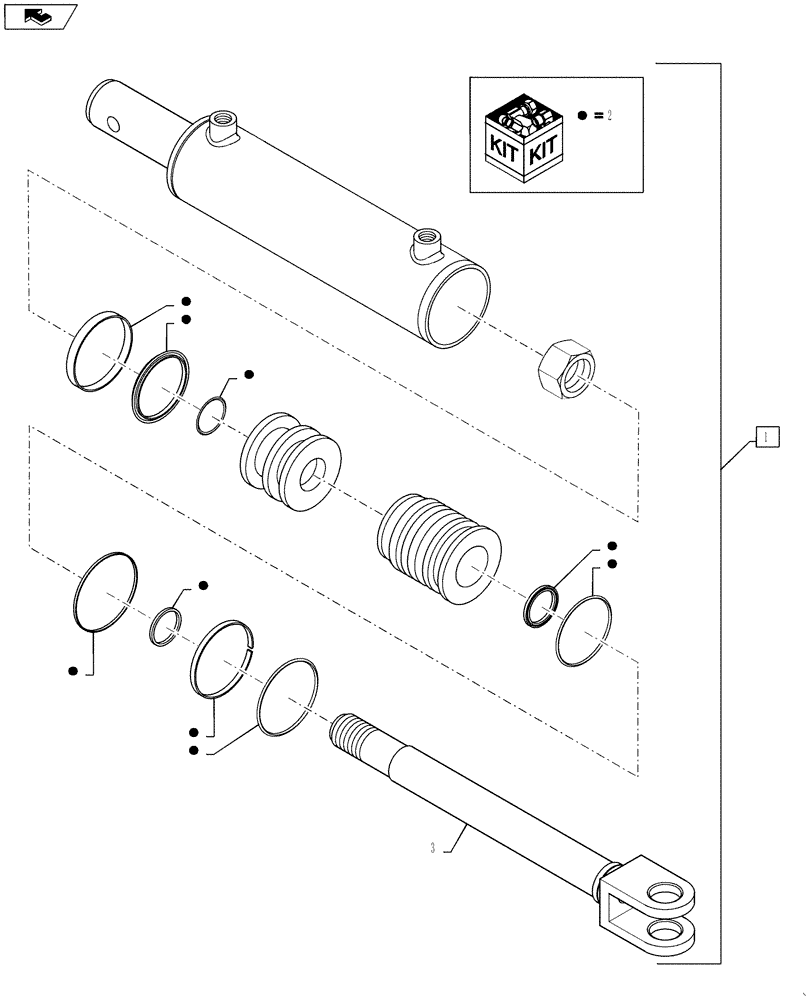

Схема запчастей Case IH 810 - (35.748.03) - 8" AUGER GATE CYLINDER (35) - HYDRAULIC SYSTEMS
2
2
2
2
2
2
1
2
2
3
2
2
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266444

CYLINDER,Double Acting, 19.05mm Rod, 254mm Stroke

8" Auger Gate, 1.5 X 10 X .75, Complete, Includes Ref 2 and 3

1шт.

2

87268692

SEAL KIT

1.5"

1шт.

3

87268696

ROD

8" Auger Gate Cylinder

1шт.

Выбрано товаров: 3
