(35.911.04) - OUTER BOOM FOLD CYLINDER, 70’ BOOM

Запчасти Case IH 810 (35.911.04) - OUTER BOOM FOLD CYLINDER, 70’ BOOM (35) - HYDRAULIC SYSTEMS

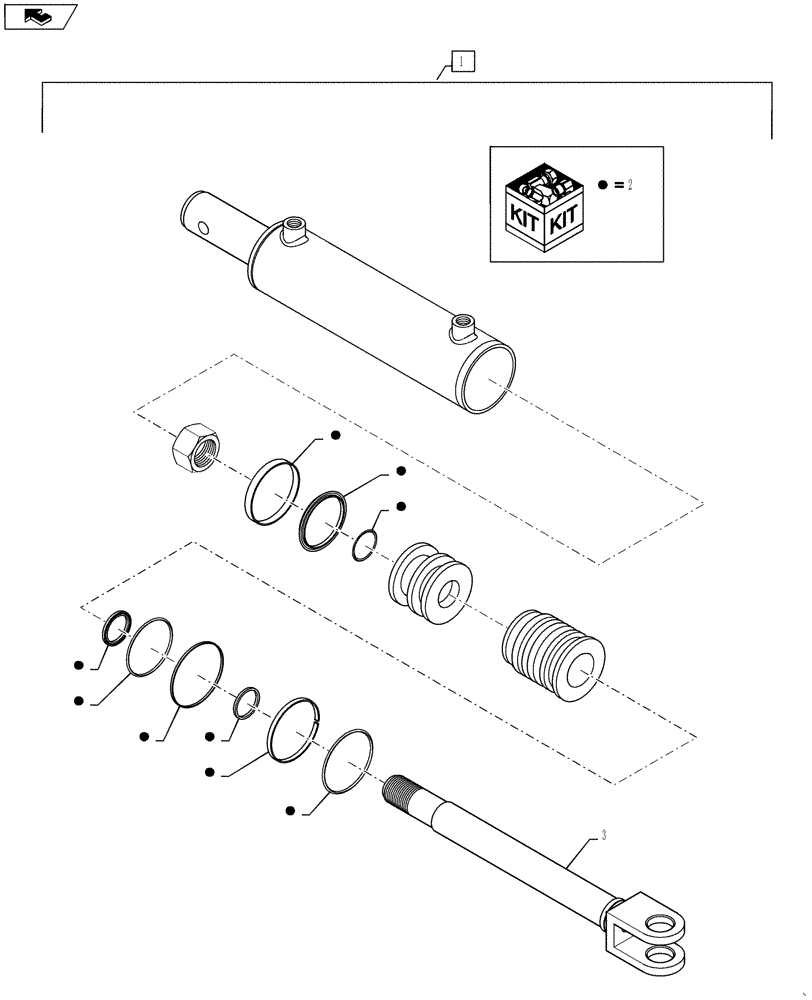

Схема запчастей Case IH 810 - (35.911.04) - OUTER BOOM FOLD CYLINDER, 70’ BOOM (35) - HYDRAULIC SYSTEMS
2
2
2
home
3
2
2
2
2
1
2
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266458

CYLINDER,Double Acting, 31.75mm Rod, 503.68mm Stroke

Outer Boom Fold, 70' Boom, 3 X 19.63 X 1.25, Complete, Includes Ref 2 and 3

1шт.

2

87268694

SEAL KIT

1шт.

3

87268700

ROD

Cylinder

1шт.

Выбрано товаров: 3
