(10-008) - WET BOOM, 2.5”, LH, INNER, 70’

Запчасти Case IH FLX810 (10-008) - WET BOOM, 2.5”, LH, INNER, 70’ Wet Kit

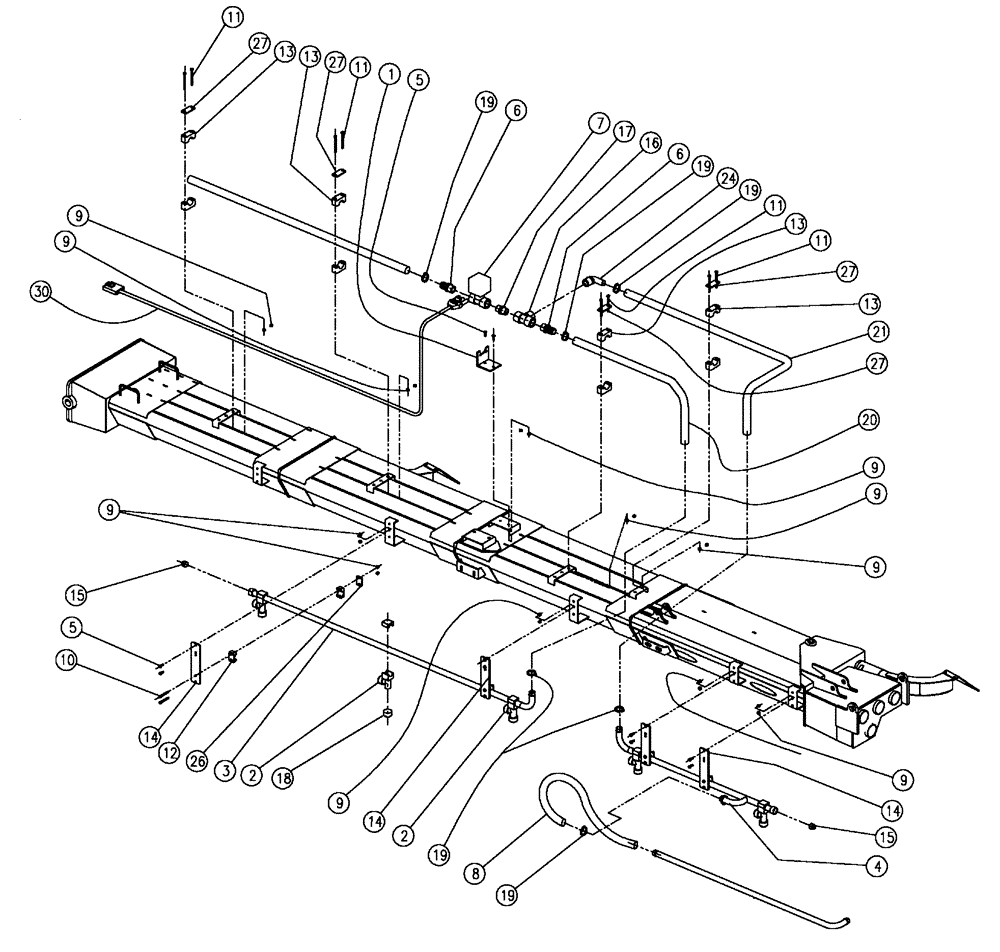

Схема запчастей Case IH FLX810 - (10-008) - WET BOOM, 2.5”, LH, INNER, 70’ Wet Kit
13
2
14
27
11
9
9
9
6
13
5
9
19
11
15
24
8
19
20
21
14
13
11
30
3
14
7
19
19
9
18
27
9
5
17
27
10
19
11
27
26
13
6
9
2
12
1
15
9
16
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

2

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

1шт.

3

BN303268

BAR

Spraybar, Inner

1шт.

4

BN315384

BAR

S-Bar, Inner, End, LH, 70

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

1шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

7

87389559

VALVE

Electric, 1" Ball

1шт.

8

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

9

BN55359

LOCK NUT,1/4"-20, SS

1шт.

10

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

1шт.

11

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

1шт.

12

BN65324

CLAMP

1" OD, Poly

1шт.

13

BN67494

CLAMP

1.5Dia

1шт.

14

BN68981

BRACKET

Spray Bar

1шт.

15

BN73553

PLUG

3/4" NPT, Poly

1шт.

16

BN73629

TEE

1" Poly Pipe

1шт.

17

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

18

BN74619

CAP

W/Gasket Tee Jet Black

1шт.

19

BN310447

HOSE CLAMP

#20, Stainless Steel

1шт.

20

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

1шт.

21

BN53759

1" EPDM x 72.0"

1шт.

24

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

26

BN311249

PLATE

Single, Size 3

1шт.

27

BN309483

PLATE

Single, Size 5

1шт.

30

BN313987

WIRE HARNESS

Ball Valve EXT.

1шт.
