(10-033) - WET BOOM, 3.0”, REAR TUBE, 60’

Запчасти Case IH FLX810 (10-033) - WET BOOM, 3.0”, REAR TUBE, 60’ Wet Kit

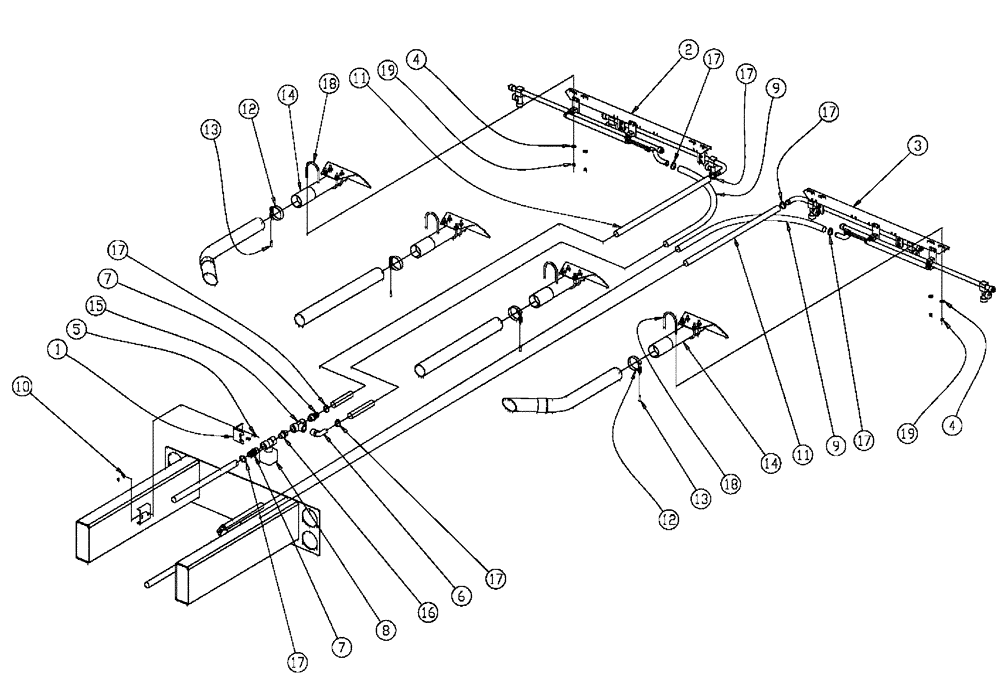

Схема запчастей Case IH FLX810 - (10-033) - WET BOOM, 3.0”, REAR TUBE, 60’ Wet Kit
8
15
17
10
13
9
13
114
17
9
14
2
12
4
7
6
3
4
5
17
17
19
19
1
16
17
18
11
18
12
7
11
17
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

2

BN301636

BAR

Spray Group, Extend, RH

1шт.

See Fig. 10-013

1шт.

3

BN301637

BAR

Spray Group, Extend, LH

1шт.

See Fig. 10-015

1шт.

4

BN50146

WASHER,3/8", Stainless

8шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

8

87389559

VALVE

Electric, 1" Ball

2шт.

9

BN53756

HOSE,42.00"

2шт.

10

BN55359

LOCK NUT,1/4"-20, SS

4шт.

11

BN66856

HOSE

1" EPMD x 25.00"

2шт.

12

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

4шт.

13

BN68086

CAP

RND, Rubber,.25 ID x 1.00

4шт.

14

BN65560

TUBE

Extension, 14.75

4шт.

15

BN73629

TEE

1" Poly Pipe

2шт.

16

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

17

BN310447

HOSE CLAMP

#20, Stainless Steel

10шт.

18

BN68492

U-BOLT

3/8-16 UNC x 3, SS

4шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.
