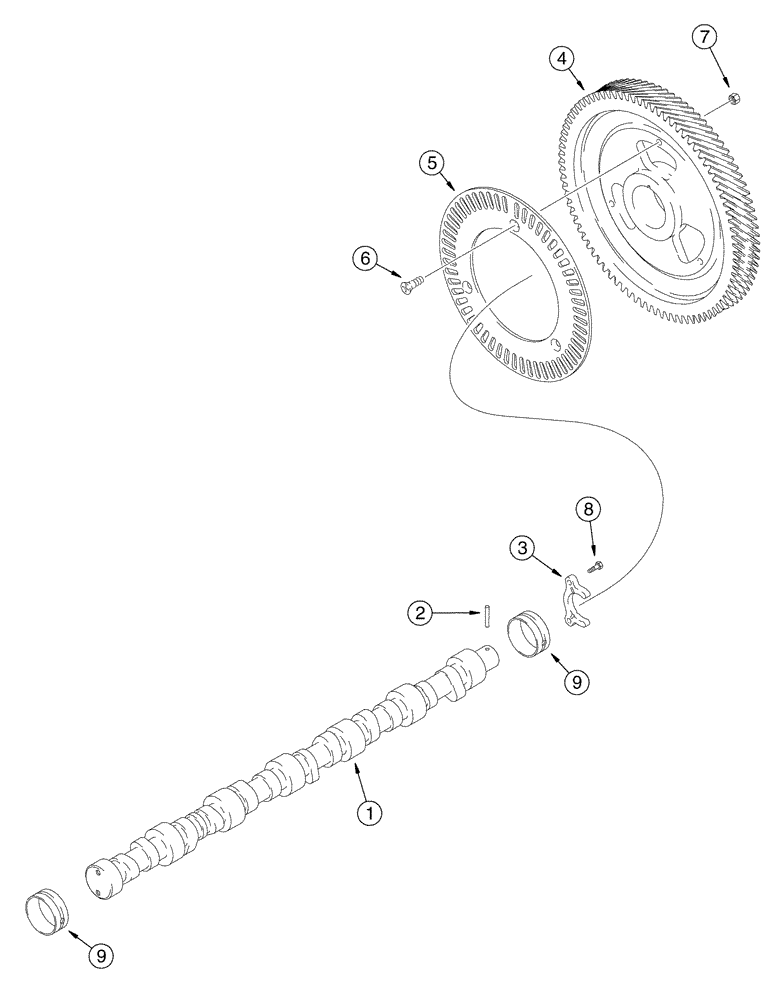

Запчасти Case IH FLX3300B (02-017) - CAMSHAFT (FLX3300B CASE ENGINE) (01) - ENGINE

1

J944474

CAMSHAFT

1шт.

1

J938163R

REMAN-CAMSHAFT

Reman for new P/N J944474

1шт.

1

J938163C

CORE-CAMSHAFT

Return Number

1шт.

2

J917883

PIN

1шт.

3

J944001

SUPPORT

1шт.

4

J944298

GEAR

Assembly

1шт.

Consists of Refs. 4, 5, 6, 7

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Screw

3шт.

7

NSS

NOT SOLD SEPARAT

Nut

3шт.

8

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

9

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Bushing, Replaces : J943199

7шт.
