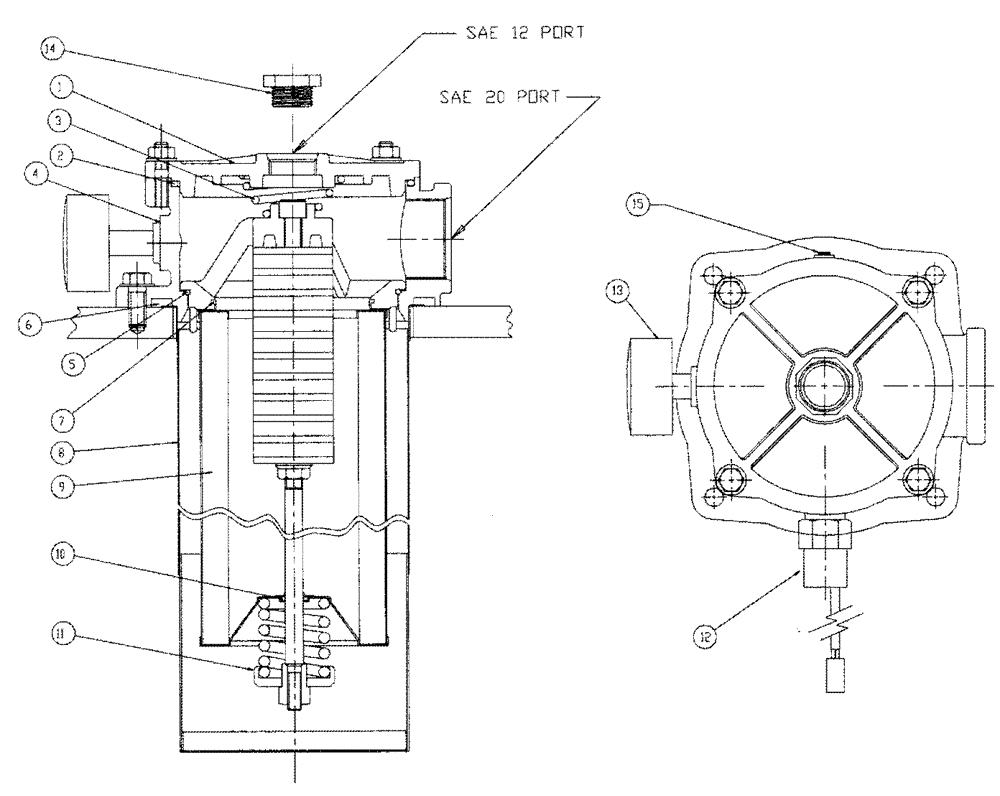

Запчасти Case IH FLX3510 (06-009[01]) - HYDRAULIC TANK FILTER, LONG, BSN Y6T020936 (07) - HYDRAULICS

1

BN54259

COVER

Filter Assembly

1шт.

2

BN54260

O-RING

Cover, Filter A

1шт.

3

BN54261

COIL SPRING

conical

1шт.

4

BN306202

HEAD

1шт.

5

BN54263

O-RING

insert, Buna

1шт.

6

BN54264

GASKET

Tank

1шт.

7

BN54265

SEAL

Bypass

1шт.

8

BN54266

FILTER

Diffusor - Assembly

1шт.

9

BN313778

FILTER

Element (18" Long)

1шт.

10

BN54267

O-RING

element

1шт.

11

BN54268

Bypass

1шт.

12

BN53955

PRESSURE SWITCH

1шт.

13

BN53954

GAUGE

Pressure

1шт.

14

BN54270

PLUG

External, W/O-Ring #12

1шт.

15

BN54271

PLUG

Internal Hex 1/4 NPT

1шт.

16

87271195

REPAIR KIT

Filter Seal Kit, Not Shown

1шт.
