(02-009) - TANK ASSEMBLY, 150 GALLON FUEL

Запчасти Case IH FLX4010 (02-009) - TANK ASSEMBLY, 150 GALLON FUEL (01) - ENGINE

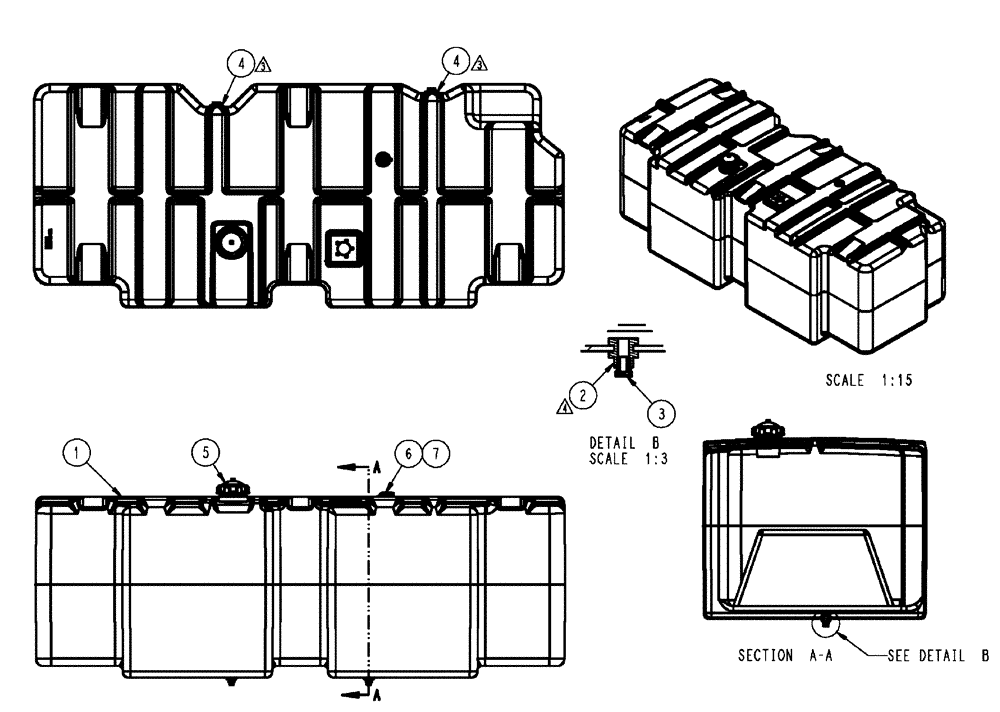

Схема запчастей Case IH FLX4010 - (02-009) - TANK ASSEMBLY, 150 GALLON FUEL (01) - ENGINE
4
4
3
2
1
6
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87269155

TANK

Assembly, 150 Gallon Fuel With Parts

1шт.

2

BN306082

FITTING

Assembly, Short Tank

2шт.

3

86568834

PLUG,1/4" - 18 NPT

2шт.

4

344475A1

FITTING

fuel tank 1/2" NPTF

2шт.

5

BN324706

CAP

Fuel - Nonvent Diesel

1шт.

6

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

fuel tank roll over valve

1шт.

7

275800A1

VALVE STEM

Roll Over, Fuel

1шт.
