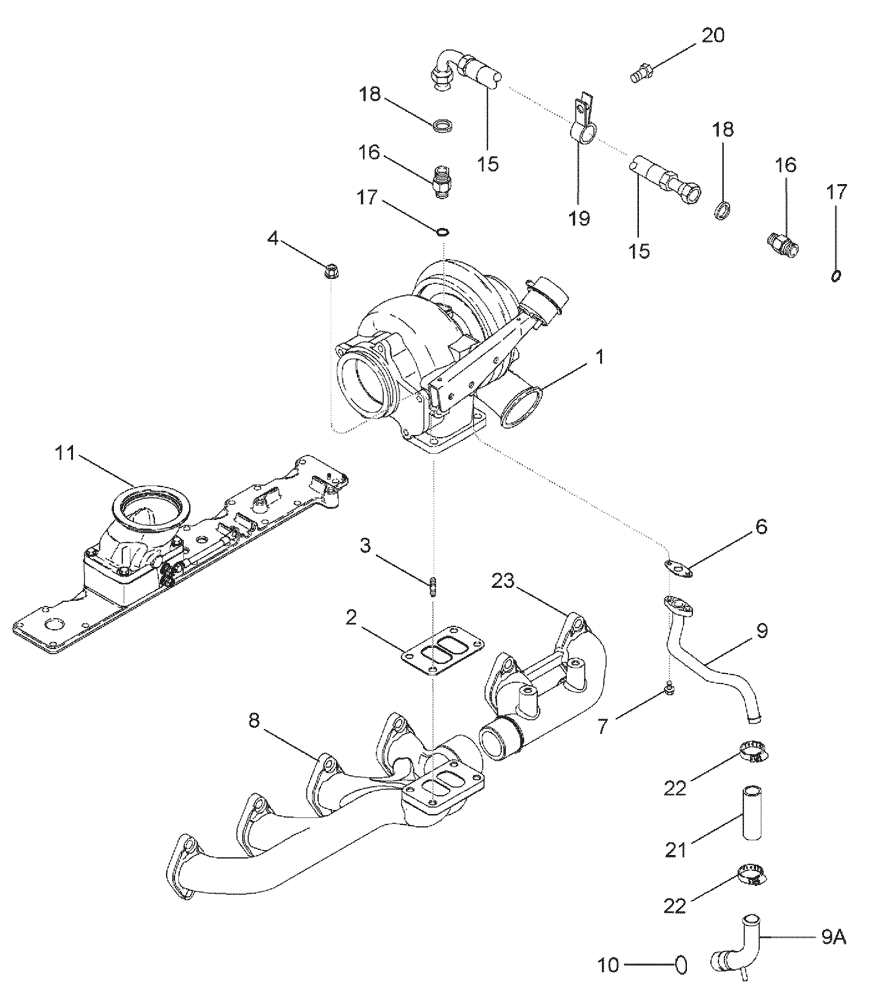

Запчасти Case IH TITAN 3520 (02-041[01]) - TURBOCHARGER SYSTEM (01) - ENGINE

1

87355317

TURBOCHARGER

1шт.

1

87355317C

CORE-TURBOCHARGER

Return Number, TURBOCHARGER

1шт.

1

87355317R

REMAN-TURBOCHARGER

Reman for New PN 87355317

1шт.

1

84269951R

REMAN-TURBOCHARGER

Reman For New PN 87355317

1шт.

1

84269951C

CORE-TURBOCHARGER

Return Number

1шт.

2

J901356

GASKET,0.5mm Thk

TURBO MOUNT

1шт.

3

J818823

STUD

M10 X 1.5

4шт.

4

J818824

FLANGE NUT

M10

4шт.

6

J937706

GASKET,0.79mm Thk

OIL DRAIN

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

87344862

EXHAUST MANIFOLD

1шт.

9

86993028

TUBE,0.875" OD

TURBO DRAIN AT TURBO

1шт.

9a

J945108

TUBE

TURBO DRAIN

1шт.

10

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

11

87537754

AIR INTAKE TUBE

1шт.

15

87345099

FLEXIBLE HOSE,9.53mm ID x 385mm L, SAE 100R14

533 mm (21")

1шт.

16

J922789

HYD CONNECTOR

MALE (INCLUDES REF. 17 & 18)

2шт.

17

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

18

J922794

SEALING RING

2шт.

19

87434675

CLAMP,10.16mm ID, 10.41mm Bolt Hole, P Type

1шт.

20

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

21

J286499

HOSE

76MM (3 IN) TURBO DRAIN TUBE

1шт.

22

87016721

HOSE CLAMP,17.5mm - 31.7mm

2шт.

23

87344861

EXHAUST MANIFOLD

1шт.
