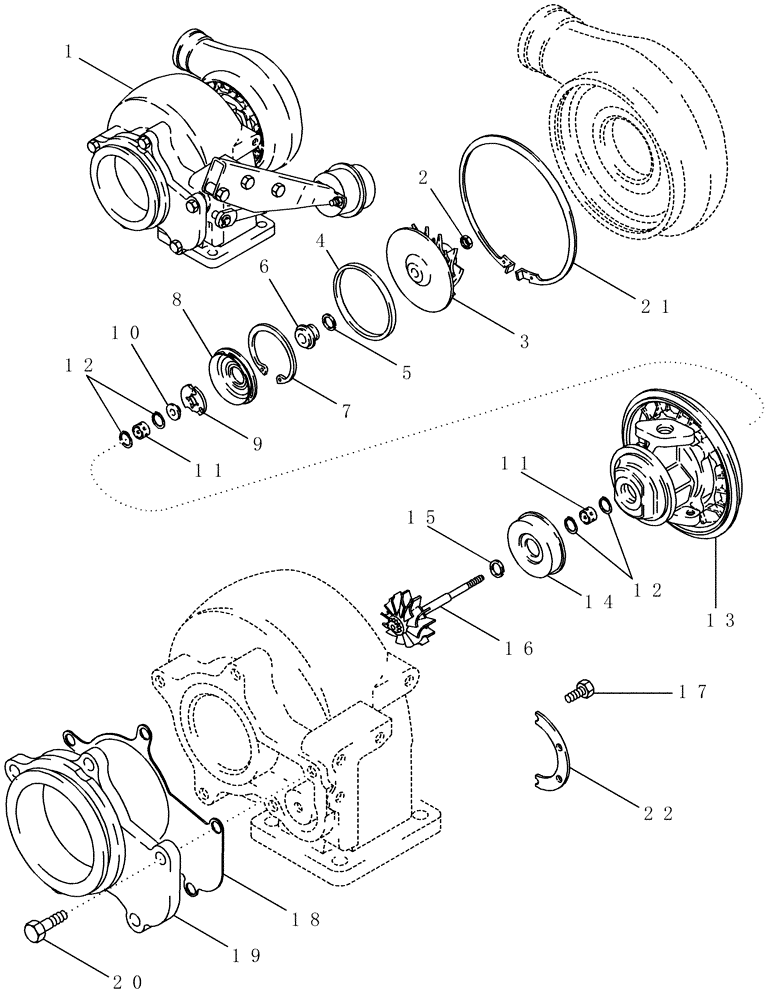

Запчасти Case IH TITAN 3520 (02-041[02]) - TURBOCHARGER ASSEMBLY - INTERNAL COMPONENTS (01) - ENGINE

87355317

TURBOCHARGER

Inc. 1 - 22, Plus Components Shown on Fig. 02-041(03)

1шт.

87355317R

REMAN-TURBOCHARGER

Remanufactured, TURBOCHARGER

1шт.

87355317C

CORE-TURBOCHARGER

Return Number, TURBOCHARGER

1шт.

1

84269951R

REMAN-TURBOCHARGER

Reman For New PN 87355317

1шт.

1

84269951C

CORE-TURBOCHARGER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, Center, Inc. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor and Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J537960

GASKET,0.46mm Thk

1шт.

19

J537979

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
