(44.101.01[02]) - FRONT AXLE, SN YCT033001 AND AFTER

Запчасти Case IH TITAN 3530 (44.101.01[02]) - FRONT AXLE, SN YCT033001 AND AFTER (44) - WHEELS

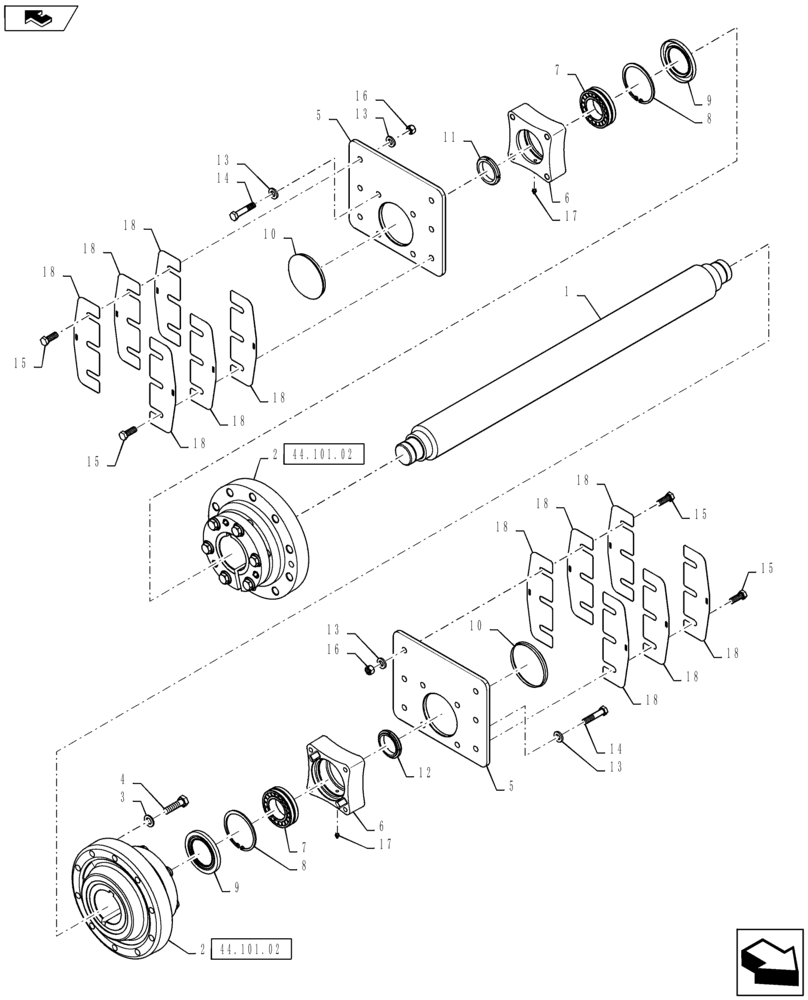

Схема запчастей Case IH TITAN 3530 - (44.101.01[02]) - FRONT AXLE, SN YCT033001 AND AFTER (44) - WHEELS
7
13
17
16
18
18
2
13
6
18
18
15
1
18
5
18
44.101.02
6
3
5
10
7
11
15
16
15
18
18
9
44.101.02
2
18
13
18
4
15
14
8
12
home
8
17
18
13
10
9
18
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84540566

SHAFT

Front Axle

1шт.

2

87552447

HUB

115 mm Axle

2шт.

See Fig 44.101.02 For Service Parts

1шт.

3

87529313

WASHER,24mm ID x 44mm OD x 4mm Thk

24 x 44 x 4mm, HDN, DOR

10шт.

4

87342044

BOLT,Hex, M22 x 80mm, Cl 10.9

M22 - 2.5 X 80, 10.9, DOR

10шт.

5

84527818

COVER PLATE

Bearing

2шт.

6

84361791

BEARING HOUSING

2шт.

7

140447

ROLLER BEARING,70mm ID x 125mm OD x 31mm W

70mm ID x 125mm OD x 31mm Width

2шт.

8

800-21130

SNAP RING,M130, Int

2шт.

9

84280779

SEAL

Double Lip

2шт.

10

613201

COVER,153.5mm OD x 42.1mm W

Hub Cap

2шт.

11

87268062

BEARING LOCK NUT,79.4 mm ID x 84.1 mm OD x 15.88 mm

1шт.

12

87268061

BEARING LOCK NUT,79.4 mm ID x 84.1 mm OD x 15.88 mm

1шт.

13

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 mm, HDN, DOR

20шт.

14

86980447

BOLT,Hex, M16 x 80mm, Cl 8.8

Hex, M8 - 2 X 80, 8.8, DOR

8шт.

15

87027232

BOLT,Hex, M16 x 45mm, Cl 10.9, Full Thd

12шт.

16

87344007

LOCK NUT

M16 - 2, 10.9, DOR

12шт.

17

BN10151

LUBE NIPPLE

1/8"-27 Straight

2шт.

18

47384772

SHIM

Front Axle Bearing, 1mm

1шт.
