(90.102.02) - HOOD LIFT CYLINDER

Запчасти Case IH TITAN 3530 (90.102.02) - HOOD LIFT CYLINDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

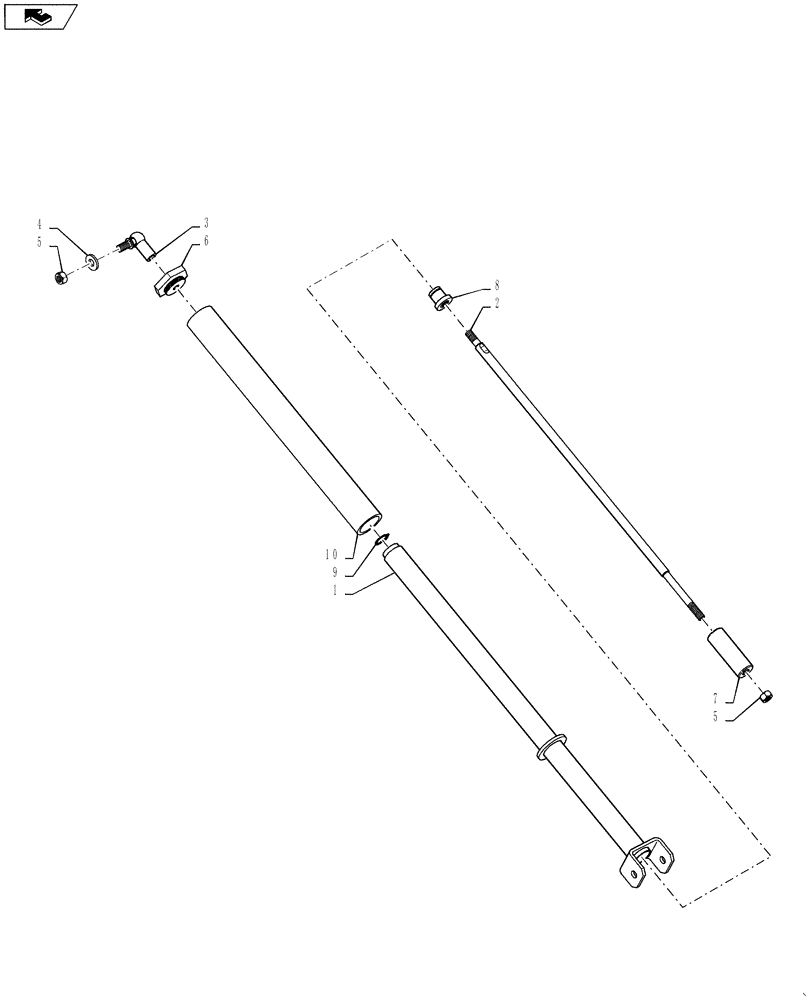

Схема запчастей Case IH TITAN 3530 - (90.102.02) - HOOD LIFT CYLINDER (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
1
10
3
9
2
6
home
5
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

342843A1

HYD TUBE,618 mm Length

Assembly, Lift Cylinder

1шт.

2

87266703

PISTON ROD

Lift Cylinder

1шт.

3

3222844R1

BALL JOINT

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

87266698

RING NUT

Spring Seat

1шт.

7

342841A1

PISTON ROD

Lift Cylinder

1шт.

8

87266697

BUSHING

Piston Stop

1шт.

9

100-1175

SNAP RING,#75, Ext

1шт.

10

342447A1

SPRING

Compression, 44.5X4.7X914

1шт.
