(05-005) - 54" FIRESTONE DT, TIRE-MTD LH/RH, 800/50, 12PL, FS

Запчасти Case IH TITAN 4020 (05-005) - 54" FIRESTONE DT, TIRE-MTD LH/RH, 800/50, 12PL, FS Tires

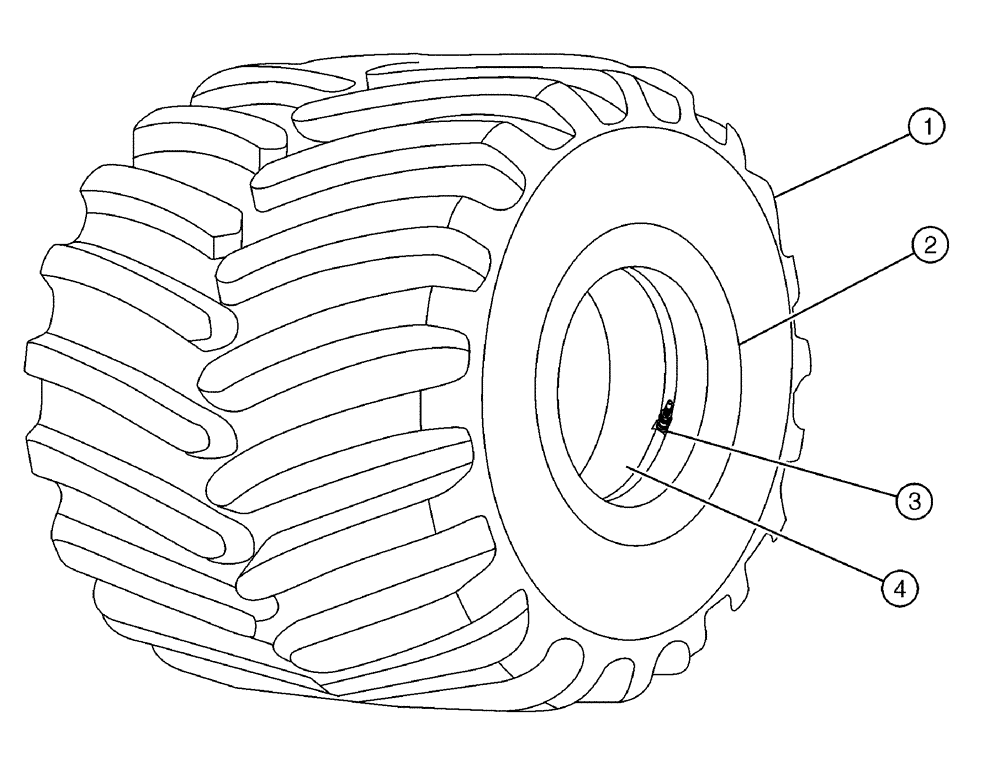

Схема запчастей Case IH TITAN 4020 - (05-005) - 54" FIRESTONE DT, TIRE-MTD LH/RH, 800/50, 12PL, FS Tires
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302097

800/50-25, 12PL, FS

1шт.

2

BN311817

WHEEL ASSY

25W x 26D, 0 Offset

1шт.

3

362766A1

VALVE STEM

TR-618A

1шт.

4

333089A1

DECAL

torque wheel nuts

1шт.

4a

BN2296172-019

WHEEL NUT

Wheel LH

10шт.

Associated Part of Decal, Torque Wheel Nut, P/N 333089A1

1шт.

4b

BN2296172-018

WHEEL NUT

Wheel RH

10шт.

Associated Part of Decal, Torque Wheel Nut, P/N 333089A1

1шт.
