(02-021[02]) - FAN SHROUD, TITAN 4520, SERIAL NUMBER YAT028756 AND AFTER

Запчасти Case IH TITAN 4020 (02-021[02]) - FAN SHROUD, TITAN 4520, SERIAL NUMBER YAT028756 AND AFTER (01) - ENGINE

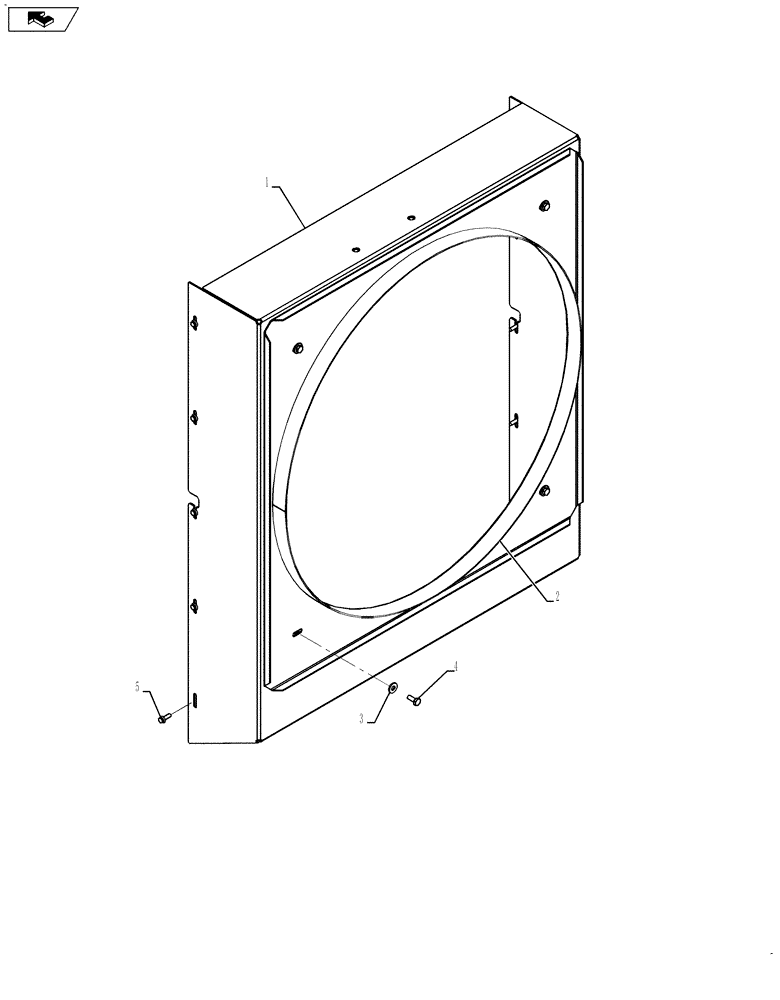

Схема запчастей Case IH TITAN 4020 - (02-021[02]) - FAN SHROUD, TITAN 4520, SERIAL NUMBER YAT028756 AND AFTER (01) - ENGINE
5
4
home
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84359587

SHROUD

4 Wheeler Fan

1шт.

2

87267997

PLATE

Fan Guard

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

87343134

SERRATED BOLT

SERRATED 1/4-20 X 3/4 5SPL DOR

10шт.
