(55.560.01) - AIR VALVE WITH HARNESS

Запчасти Case IH TITAN 4030 (55.560.01) - AIR VALVE WITH HARNESS (55) - ELECTRICAL SYSTEMS

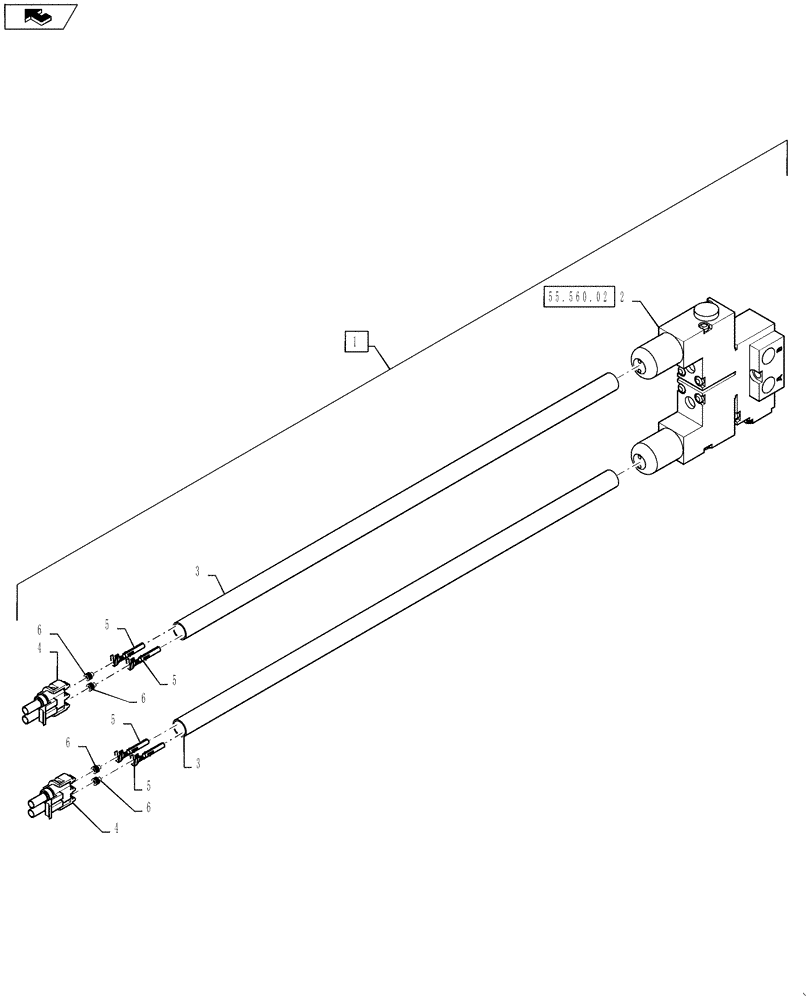

Схема запчастей Case IH TITAN 4030 - (55.560.01) - AIR VALVE WITH HARNESS (55) - ELECTRICAL SYSTEMS
5
3
5
6
3
2
6
5
1
55.560.02
6
home
6
4
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87271289

PNEUMATIC VALVE

Control, Includes Ref 2 - 6

1шт.

2

BN304833

SOLENOID VALVE

Air, Double Solenoid

1шт.

See Fig 55.560.02 For Service Parts

1шт.

3

BN2290335

LOOM

Harness, 1/4" Split, Bulk, Cut To Length

3шт.

4

245482C1

ELEC CONNECTOR,2 Pin

2шт.

5

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Terminal

4шт.

6

225124C1

SEAL,2 - 2.9 mm2

4шт.
