(90.124.09) - DELUXE SEAT ASSEMBLY, CLOTH, SN YCT033001 AND AFTER

Запчасти Case IH TITAN 4030 (90.124.09) - DELUXE SEAT ASSEMBLY, CLOTH, SN YCT033001 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

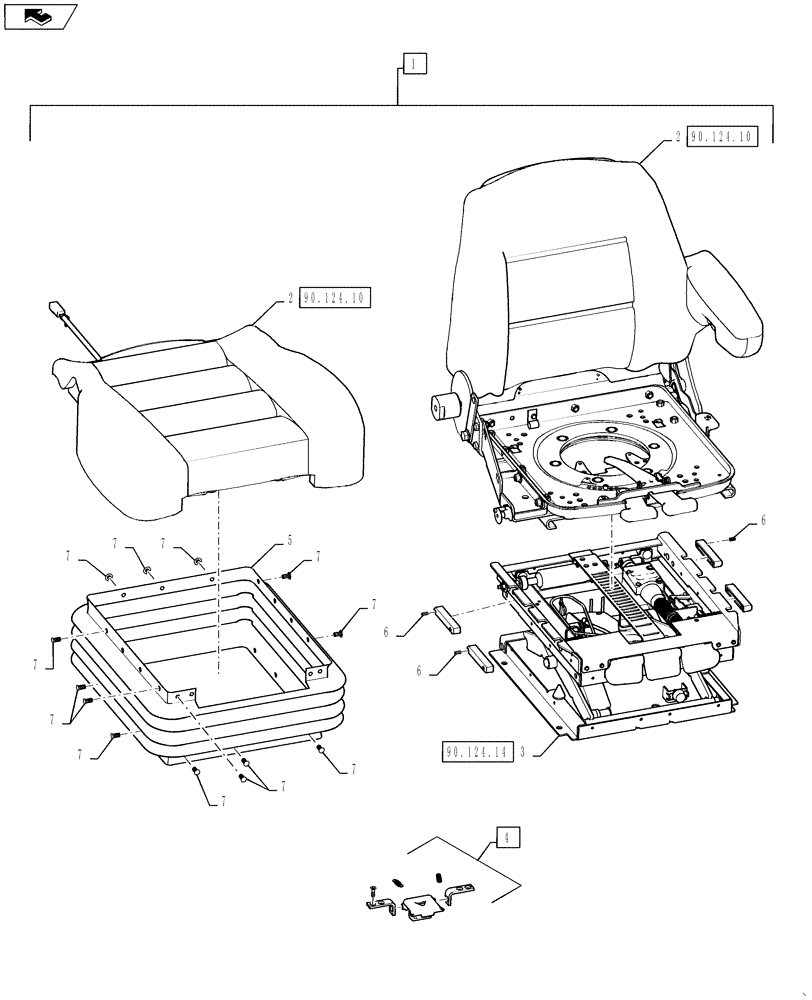

Схема запчастей Case IH TITAN 4030 - (90.124.09) - DELUXE SEAT ASSEMBLY, CLOTH, SN YCT033001 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
7
2
6
2
90.124.14
7
1
7
7
90.124.10
6
4
90.124.10
7
6
7
7
7
home
3
7
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84426012

DRIVER SEAT

Complete, Deluxe, Cloth Seat With Air Suspension, Includes Ref 2 - 7

1шт.

2

84162220

SEAT

Assembly, Top

1шт.

See Fig 90.124.10 For Service Parts

1шт.

3

84426027

SUSPENSION

Complete Air Suspension

1шт.

See Fig 90.124.14 For Service Parts

1шт.

4

87347934

LATCH

Slide, Kit

1шт.

5

84482042

KIT

Seat Boot

1шт.

6

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

7

84482043

KIT

Boot Button Kit

1шт.
