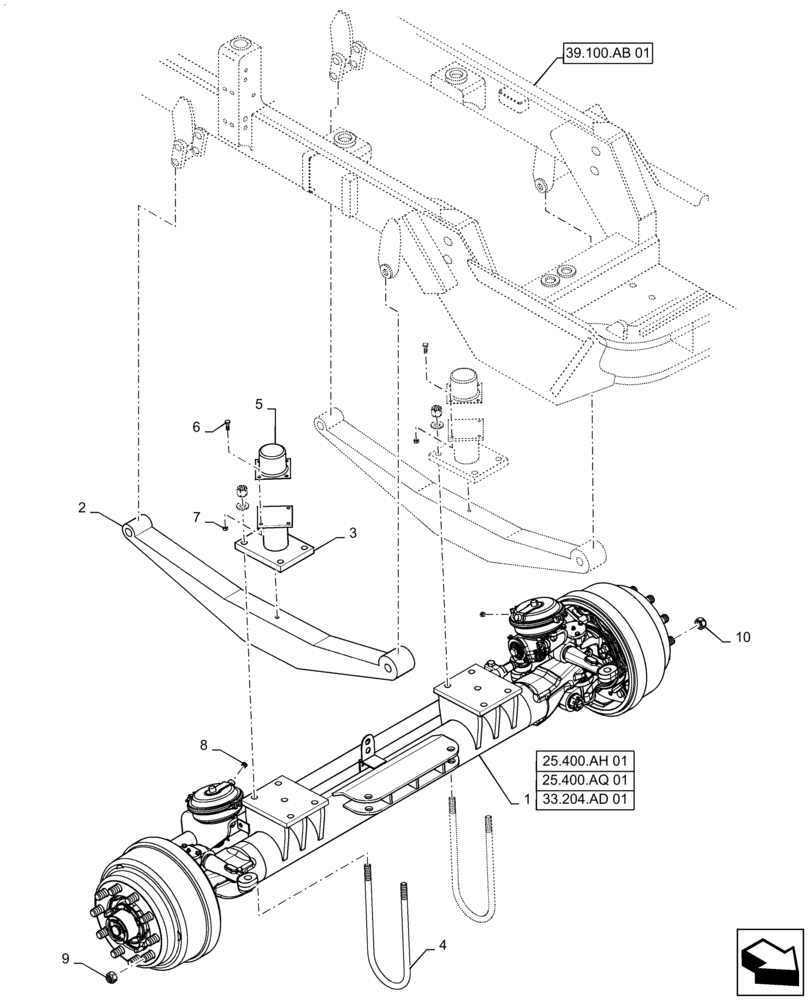

Запчасти Case IH TITAN 4040 (25.400.AM[01]) - FRONT AXLE AND LEAF SPRING (25) - FRONT AXLE SYSTEM

1

87493493

AXLE

Front Steer

1шт.

2

87270793

SPRING

Front Upturned Eye

2шт.

3

87267450

MOUNTING PLATE

U-Bolt Base

2шт.

4

87267448

U-BOLT

7/8 x 6-1/2 x 18-1/2

4шт.

5

BN5001054

BUMPER

Rubber, 3 3/8"

2шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

8

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

2шт.

9

87654450

WHEEL NUT

Lug LH

10шт.

10

87654448

WHEEL NUT

Lug RH

10шт.
